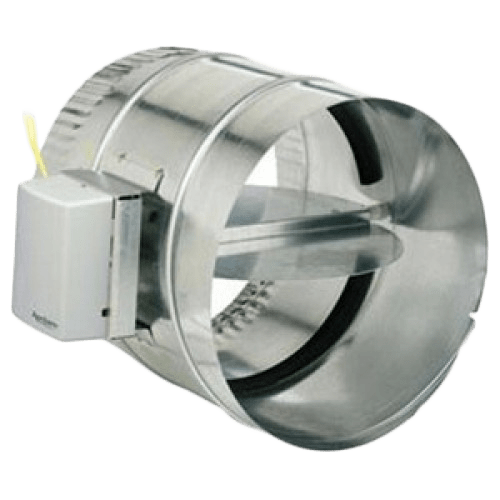

APRILAIRE 6506 6 in. Round Ventilation Damper

Product Description

The APRILAIRE 6506 6 in. Round Ventilation Damper is designed for compatibility with AprilAire Ventilation and Dehumidification systems. This product is built to endure low pressure conditions and has been rigorously tested to withstand extreme temperatures, making it suitable for use in attics during summer. The unit is equipped with a synchronous motor that includes impedance protection, ensuring reliable performance over time.

• Compatible with AprilAire Ventilation and Dehumidification systems
• Designed for low pressure systems (less than one inch water column)
• Includes a synchronous motor for enhanced reliability

Product Highlights

This damper effectively controls airflow in ventilation systems, helping to maintain indoor air quality and comfort.

Product Information

Standard Information

• UPC: 686720650604
• Weight: 5 pounds

Technical Specifications

• Damper Type: Vent Dampers
• Diameter: 6 inches
• Gauge (metal): 24 ga
• Installation Type: Horizontal Mount
• Material: Metal, Steel
• Shape: Round
• Volts: 24V
• Watts: 6 W
• Series: 6500 Series
• Finish: Galvanized
• Motor Type: Synchronous
• Motor Specifications: 24 VAC at 60 Hz, 6 W, 10 VA
• Pressure Rating: 1 in-WC
• Type: Damper
• Controls: Electronic
• Housing Material: Galvanized Steel
• Amperage (Amps): 0.25
• Power Supply: Hardwired
• Duct Diameter: 6.0 inches
• Width: 9.28 inches
• Depth: 10.75 inches
• Height: 6.0 inches
