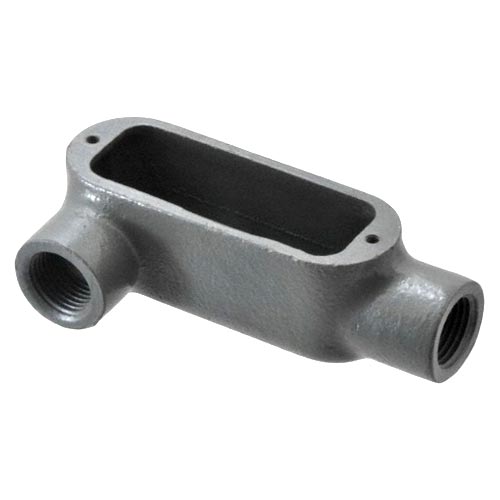

Appleton LR47 Type LR Conduit Outlet Body, Form 7, 19.5 cu-in Capacity

Product Description

The Appleton LR47 is a Type LR conduit outlet body designed for use in rigid and IMC conduit applications. This product features a flat back design for efficient wiring capacity and surface mountings. Its internal volume and maximum wire capacities are clearly marked for ease of use. The unit allows for right side access openings and includes time-saving clip-on covers. It can be employed in wet locations when used with gasketed covers.

• Flat back design for greater wiring capacity
• Interchangeable with other manufacturers' Form 7 conduit bodies
• Gasketed covers suitable for wet locations

Product Highlights

The Appleton LR47 conduit outlet body is built to standard specifications, ensuring quality and reliability in electrical installations.

Product Information

Standard Information

• Brand: Appleton
• MPN: LR47

Technical Specifications

• Application: Rigid/IMC Conduit Applications
• Capacity: 19.5 cu-in
• Color: Gray
• Connection Type: Tapered FNPT
• Country of Origin: MX
• Dimensions: 6.5 in L x 3.1875 in W x 2.3125 in H
• Enclosure: NEMA FB-1/FB-2.10
• Finish: Aluminum Enamel/Zinc Electroplated
• Form: Form 7
• Material: Grayloy Iron
• Mounting Type: Surface
• Number of Hubs: 2
• Warranty: Limited
