Product Description

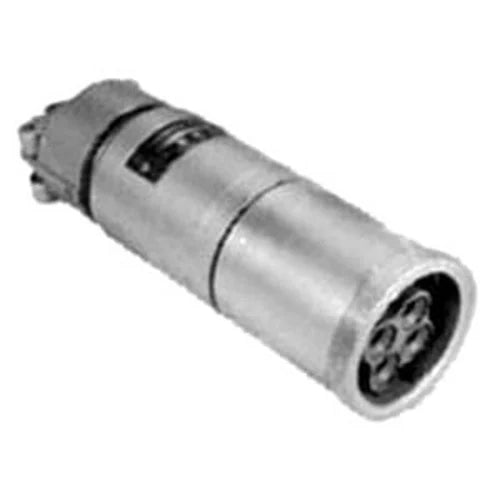

Appleton ARC1044CD is a 100 amp 4-pole connector body assembly designed for reliable electrical connectivity. This product supports a maximum voltage of 600 VAC and 250 VDC. It is suitable for various applications such as motor generators, pumps, and welders.
- Compatible with ACP1044CD clamping ring plug.
- Constructed from copper-free aluminum for durability.
- Rated for extreme temperatures from -40 to 107 degrees Celsius.
Product Highlights
The Appleton ARC1044CD provides robust performance even in demanding environments. Its design ensures a tight connection for electrical equipment.
Product Information
Standard Information
-
Brand: Appleton
-
Manufacturer: Appleton Electric
Technical Specifications
-
Catalog Number: ARC1044CD
-
Amperage Rating: 100 A
-
Voltage Rating: 600 VAC at 50 - 400 Hz, 250 VDC
-
Number of Poles: 4
-
Number of Wires: 4
-
Wire Size: 4 - 1 AWG (Building), 4 - 2 AWG (Extra Flex)
-
Material: Copper-free aluminum
-
Operating Temperature: -40 to 107 degrees C
-
Applicable Standards: UL 1682, UL 1686, UL 50E; CSA Certified: C22.2 No. 182.1
-
NEMA Rating: 3, 3R, 4, 4X
