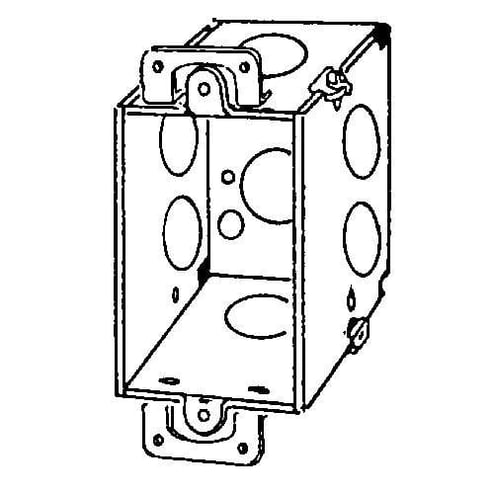

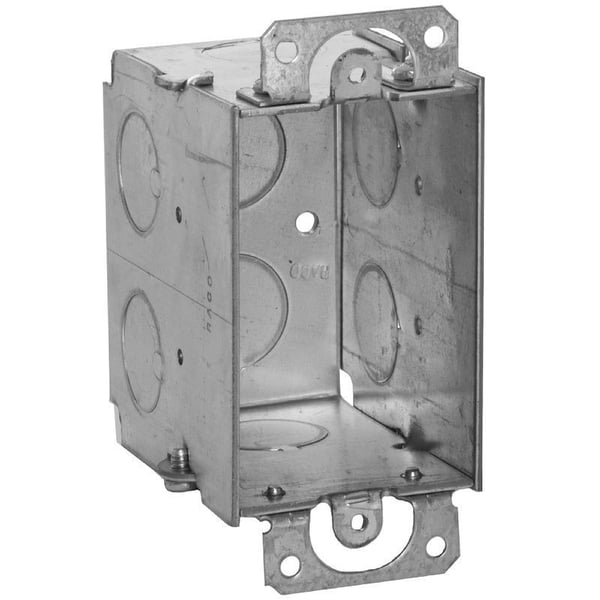

Appleton 335 Box Square Corner Switch 3X2X2-3/4

Product Description

The Appleton 335 Box is a square corner switch box with dimensions of 3X2X2-3/4. Metallic switch boxes are suitable as a junction box or a device box for switches, receptacles, and GFCIs. It is manufactured of durable materials with consistent construction for easy installation.

• Knockouts: 1/2 in Bottom, (4) 3/4 in Sides, (2) 3/4 in Ends
• Screw-on mounting
• Gangable

Product Highlights

The Appleton metallic switch box is recognized for its quality, selection, and ease of installation. It can be used as a junction box or a device box for switches.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: 335
• Country of Origin: US

Technical Specifications

• Knockout Size: 1/2 and 3/4 in
• Material: Steel
• Mounting Type: Threaded
• Number of Gangs: 1
• Number of Knockouts: 7
• Cable Entry: Knockout
• Capacity: 14 cu-in
• Enclosure Type: NEMA OS-1
• Shape: Square
• Type: Corner Gangable
• Standard & Approvals: UL 514A, E2527, RoHS Compliant
• Brand Name: Appleton
• Country of Origin: US
• Special Features: Gangable, With 3/4 And 1/2 IN Conduit Knockouts, 2-3/4 IN Deep, With Plaster Ears
• Standard: UL Standard 514A; UL Listed E2527; Nema OS-1
• Sub_Brand: Appleton
