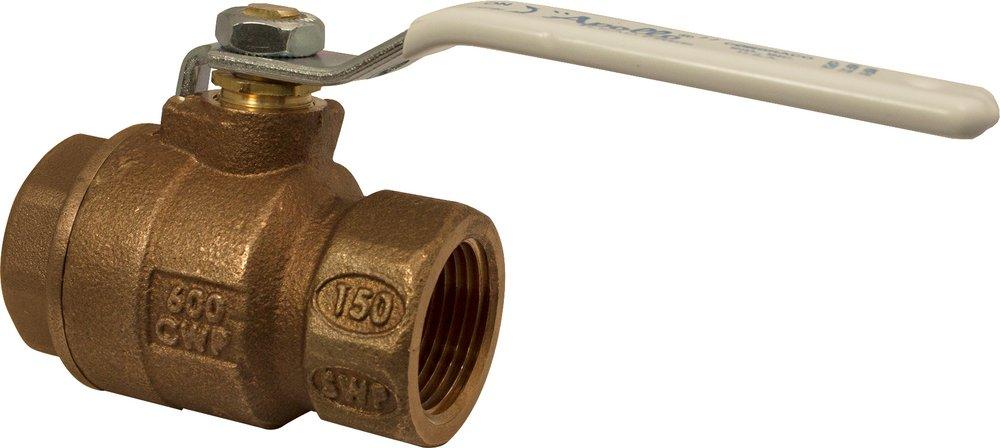

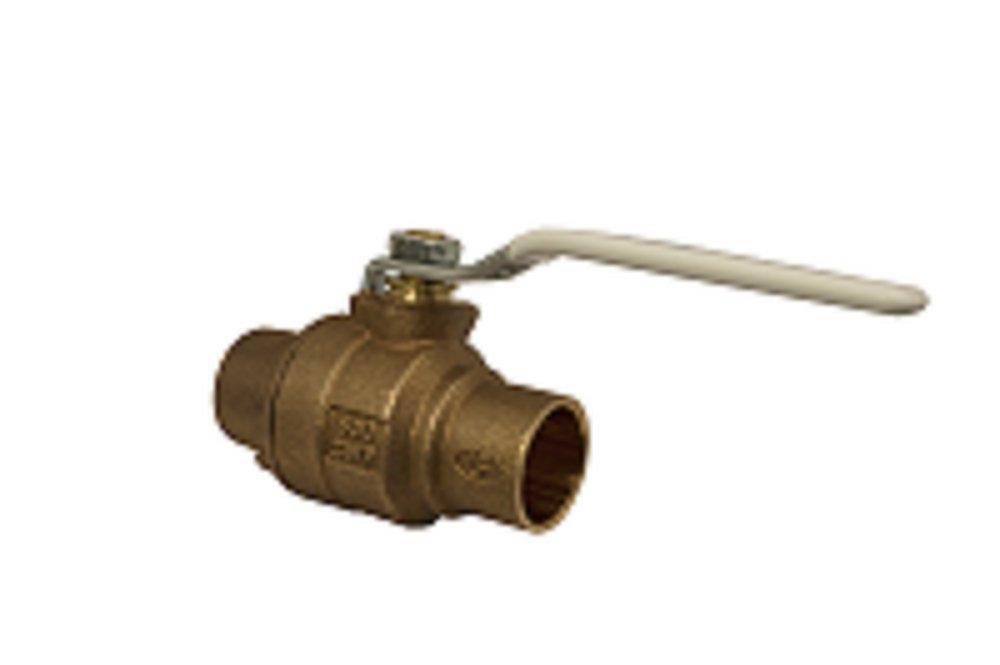

Apollo Valves 77CLF24704A Ball Valve 600# (1-1/2 in.)

Product Description

The APOLLO VALVES 77CLF24704A is a ball valve with a full port. Features EZ-Solder Lead Free Bronze, lead-free brass and bronze materials, and an easily identifiable white handle with a blue “Lead Free” hang tag. It is manufactured and 100% factory tested in the USA with RPTFE seats & seals and a blowout-proof stem design.

• EZ-Solder Lead Free Bronze
• Lead Free Brass & Bronze Materials
• Easily Identifiable White Handle and Blue ",Lead Free," Hang Tag

Product Highlights

This APOLLO VALVES ball valve is ideal for potable water applications. It features a full port design for maximum flow and is made with lead-free bronze.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 77CLF24704A
• Country of Origin: USA

Technical Specifications

• ANSI: ANSI 61, ANSI 372
• ASTM: ASTM B-16
• BAA Compliant: Yes
• CSA Certified: CSA B51
• Clean Bagged: No
• Collection: 77CLF-A Series
• End Connection 1: Sweat
• End Connection 2: NPT
• End Connections: Sweat x NPT
• FM Approved: No
• Fire Suppression System Rated: No
• Handle Material: Zinc Plated Steel
• IAPMO Listed: Yes
• ISO: ISO 9001:2008
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• Material: Cast Bronze
• Material Type: B584, C89836
• Maximum Temperature: 450
• Minimum Temperature: -20
• NSF: NSF 61, NSF 372
• NSF Certified: Yes
• Origin: Domestic
• Pressure Class: 600#
• Recommended Valve Application: Potable Water
• Temperature Range: -20 to 450 Deg F
• UL Listed: No
• Valve Body Material: Bronze
• Valve Disc Material: 316 Stainless Steel
• Valve Operator: Lever Handle
• Valve Port Opening: Full Port
• Valve Seat Material: RPTFE
• Valve Size: 1-1/2 in
• Valve Stem: Blowout-proof
• Valve Type: Ball Valve
• cUPC Certified: Yes
• Item: Ball Valve
• Ball Material: Stainless steel
• Bore Type: Full Bore
• Finish: None
• Grease-free: No
• Housing Construction: 2-Part
• Max. Pressure: 600 psi
• Medically Clean: No
• Seal Material: PTFE
• Series: 77C Series
• Shape: Straight
• Spindle Material: Stainless Steel
• Surface Protection: None
• With Filter: No
• With Thermometer: No
