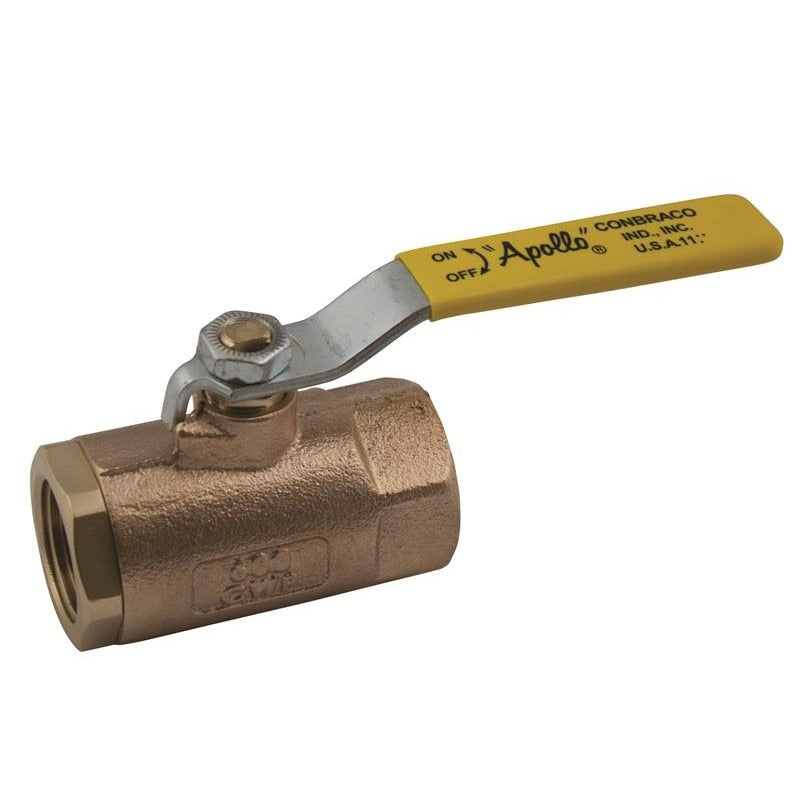

Apollo Valves 70-102-27 Bronze Ball Valve 3/8 Inches

Product Description

The APOLLO VALVES 70-102-27 is a 3/8-inch bronze ball valve designed for reliable shutoff and straightforward manual operation in plumbing and mechanical systems. Built with a chrome-plated brass ball and a blowout-proof stem, this valve delivers consistent performance across a wide range of service conditions. The adjustable packing gland allows field adjustment to address stem leakage without taking the valve out of service. Rated at 600 psig WOG cold and 150 psig saturated steam, this valve handles demanding pressure requirements in both water and steam applications. Installation is handled by licensed plumbers and pipefitters in commercial and residential settings.

This ball valve is suited for water, oil, and gas service at pressures up to 600 psig WOG cold and 150 psig saturated steam. The zinc-plated steel lever handle with a securely attached vinyl grip allows quick quarter-turn operation, making it practical in tight or high-traffic mechanical rooms. It is commonly installed on supply and return lines, isolation points, and branch takeoffs where a compact, durable shutoff is required.

Key Features

• Chrome-plated brass ball for corrosion resistance and smooth quarter-turn shutoff
• Adjustable packing gland allows stem seal adjustment without valve removal
• Blowout-proof stem design for added safety under pressure
• Rated 600 psig WOG cold and 150 psig saturated steam
• Zinc-plated steel lever handle with vinyl grip for secure manual operation
• Bronze body construction suitable for water, oil, and gas service

Compatibility

Designed as an OEM-style replacement or new-installation ball valve for 3/8-inch pipe systems in residential and commercial plumbing, hydronic heating, and mechanical piping applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local codes and IPC guidelines. Shut off system pressure and drain the line before removing or installing any valve. Verify flow direction and thread engagement before torquing fittings. Do not exceed the rated pressure or temperature limits for the valve service class.

Technical Specifications

• Valve Size: 3/8 inches
• Body Material: Bronze
• Ball Material: Chrome-plated brass
• Stem: Blowout-proof
• Packing: Adjustable packing gland
• Handle: Zinc-plated steel lever with vinyl grip
• Pressure Rating (WOG Cold): 600 psi
• Pressure Rating (Saturated Steam): 150 psi
• Weight: 0.56 pounds

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 70-102-27
