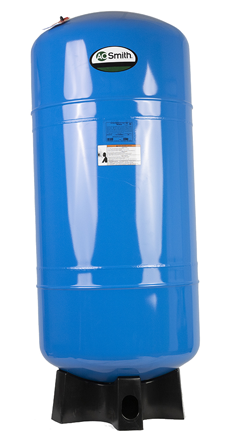

AO Smith TDU85 Trident 84.9 Gal Replacement MPN TDU85

Product Description

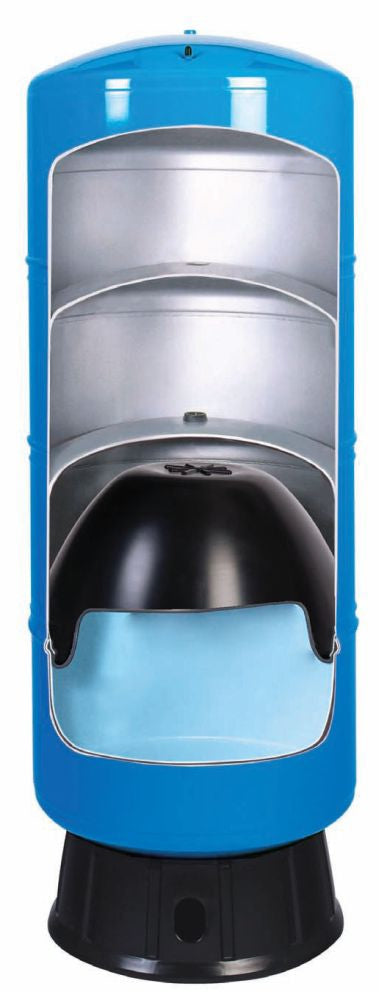

The AO Smith TDU85 is a water storage tank designed for free-standing applications. This model has a capacity of eighty-four point nine gallons and features a robust polypropylene inner lining. The tank includes a powder-coated exterior for resistance against corrosion. Its design features a parabolic diaphragm that reduces abrasive rubbing, which helps to extend the life of the tank. Additionally, the tank has a premium polymer base suitable for various applications.

• Includes a one and one-fourth inch female threaded inlet/outlet connection
• Complies with NSF/ANSI 61G/372 standards
• Comes with a five-year limited warranty

Product Highlights

The AO Smith TDU85 is ideal for reliable water storage.

Product Information

Standard Information

• Type: Freestanding, Vertical
• Tank Capacity: 84.9 Gallon

Technical Specifications

• Inlet/Outlet Connection: 1-1/4 Inch Female Threaded
• Tank Inner Lining: Polypropylene
• Pressure Rating: 125 PSI
• Precharge Pressure: 38 PSIG
• Diaphragm Material: Butyl Rubber
• Tank Dimensions: 22 Inch Diameter x 60-11/16 Inch Height
• Applicable Standard: NSF/ANSI 61G/372
