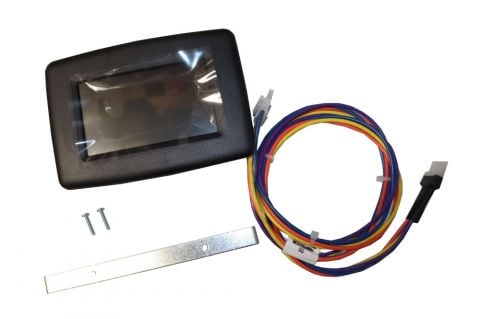

Ao Smith 100312669 Uim Assembly Kit with Ethernet

Product Description

The AO SMITH 100312669 is a pre-programmed User Interface Module (UIM) assembly kit with integrated Ethernet connectivity, designed as a direct replacement component for compatible AO Smith water heaters. The UIM serves as the primary control interface, allowing service technicians and installers to monitor system status, adjust operating parameters, and communicate with building management or remote diagnostics systems over a network connection. The pre-programmed configuration means the board arrives ready for installation without requiring manual firmware setup, reducing bench time during a service call.

This assembly kit is intended for use in commercial or residential water heating applications where the original UIM has failed or requires replacement. Ethernet connectivity supports networked installations where remote monitoring or building automation integration is required. Licensed plumbers and HVAC technicians are the typical installers for this type of control component during routine service or warranty repair work.

Key Features

• Pre-programmed from the factory — no firmware configuration required at installation
• Integrated Ethernet port for network connectivity and remote monitoring
• Direct OEM-style replacement for the original UIM assembly
• Complete kit format includes all components needed for the assembly replacement
• Supports building automation and remote diagnostics integration

Compatibility

Designed as an OEM-style replacement UIM assembly for compatible AO Smith water heater models equipped with Ethernet-capable control systems. Consult the equipment nameplate and service documentation to confirm fitment before installation.

Installation Notes

Installation should be performed by a licensed plumber or qualified HVAC service technician. Disconnect electrical power to the water heater at the breaker before removing or handling any control board or interface module. Follow all applicable local codes and the manufacturer service manual for proper connector seating and assembly reassembly procedures. Do not power the unit until all connections are secure and the assembly is fully seated.

Technical Specifications

• Connectivity: Ethernet
• Programming: Pre-programmed
• Component Type: UIM Assembly Kit

Standard Information

• Brand: AO SMITH
• Manufacturer Part Number: 100312669
