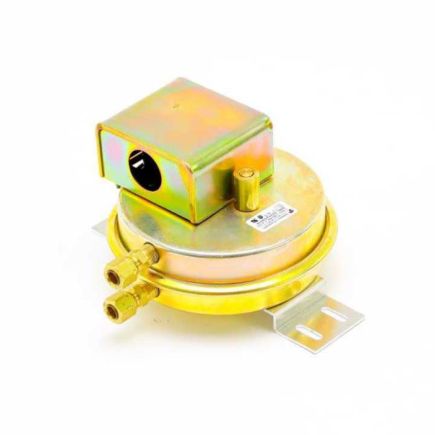

ANTUNES SML-8224210020 Air Pressure Switch

Product Description

The ANTUNES SML-8224210020 is an air pressure switch designed for efficient operation in HVAC systems. This switch utilizes a diaphragm to accurately detect changes in air pressure, ensuring optimal performance in various applications. The device features a snap-acting SPDT switch for reliable function. Additionally, it comes with enclosure-covered switch terminals for enhanced safety.

• Equipped with two quarter-inch compression sample line connections.
• Adjustable set point range from 0.05 to 1.0 inches of water column.
• Maximum pressure operation up to 30 inches of water column.

Product Highlights

This air pressure switch is ideal for HVAC technicians needing precise pressure control in their systems.

Product Information

Standard Information

• Brand: ANTUNES
• MPN: SML-8224210020

Technical Specifications

• Switch Type: Snap-acting SPDT switch
• Connections: Two quarter-inch compression sample line connections
• Terminals: Enclosure covered switch terminals
• Set Point Range: 0.05 - 1.0 inches of water column
• Mounting: Two three-quarter inch mounting feet with two holes per foot
• Maximum Pressure: 30 inches of water column
• Operating Temperature Range: -40 degrees Fahrenheit to 170 degrees Fahrenheit (-40 degrees Celsius to 77 degrees Celsius)
