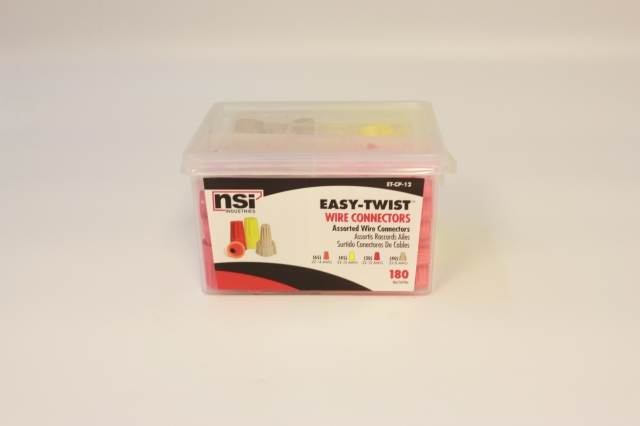

Amrad nsi-et-cp-12 Wire Connector Assortment 180 Pc

Product Description

The AMRAD nsi-et-cp-12 is a multi-color wire connector assortment pack containing 180 individual connectors across four sizes and styles. Each connector features a flame-retardant thermoplastic shell for electrical insulation, a square wire spring for secure conductor gripping, and a threaded funnel entry that guides wires into the connector without pre-twisting. The deep skirt entry reduces the risk of flashover and shorts. Rated to 105 degrees C (221 degrees F) with a maximum voltage of 1000 V for use in fixtures and signs. Suited for residential and commercial electrical work performed by licensed electricians or HVAC technicians making low-voltage and line-voltage connections.

This assortment is designed for general wiring applications where multiple connector sizes are needed on a single job or service vehicle. The pack includes orange connectors for smaller-gauge work, yellow connectors for mid-range conductors, red connectors for heavier runs, and winged tan connectors for larger multi-conductor terminations. Typical applications include fixture wiring, control panel connections, junction box terminations, and HVAC equipment wiring. The mixed pack format reduces the need to stock multiple separate containers on a service truck.

Key Features

• Flame-retardant thermoplastic shell provides reliable electrical insulation up to 1000 V
• Threaded funnel entry eliminates the need to pre-twist conductors before insertion
• Square wire spring grips conductors securely to resist pull-out
• Deep skirt entry protects against flashover and accidental shorts
• Temperature rated to 105 degrees C (221 degrees F)
• Four connector types in one pack: orange, yellow, red, and winged tan

Compatibility

Designed for use with copper conductors across a range of AWG sizes: orange connectors accept 22-14 AWG, yellow connectors accept 22-10 AWG, red connectors accept 22-8 AWG, and winged tan connectors accept 22-8 AWG. Suitable for standard fixture, sign, and junction box wiring applications rated up to 1000 V.

Installation Notes

Installation is performed by licensed electricians in accordance with NEC requirements. De-energize the circuit and verify with a meter before making any connections. Strip conductors to the specified strip length for each connector size before insertion. Do not exceed the listed AWG range or voltage rating for any connector in the assortment.

Technical Specifications

• Maximum Voltage: 1000 V (fixtures and signs)
• Temperature Rating: 105 degrees C / 221 degrees F
• Total Piece Count: 180 connectors
• Orange Connectors: 65 pieces, 22-14 AWG, strip length 5/16 inches
• Yellow Connectors: 45 pieces, 22-10 AWG, strip length 3/8 inches
• Red Connectors: 30 pieces, 22-8 AWG, strip length 7/16 inches
• Tan Winged Connectors: 40 pieces, 22-8 AWG, strip length 9/16 inches
• Shell Material: Flame-retardant thermoplastic

Standard Information

• Brand: AMRAD
• Manufacturer Part Number: nsi-et-cp-12
