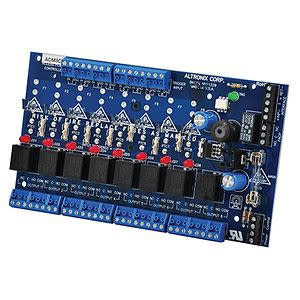

Altronix ACM8CB Access Power Controller 12 to 24 V

Product Description

The Altronix ACM8CB is an access power controller that converts one 12 to 24 volt AC or DC input into eight independently controlled Class 2 rated PTC protected power-limited outputs. Each output is rated at 2.5 amps and activated by dry trigger input from access control systems like card readers and keypads.

• Eight output ports for extensive connectivity.
• Compatible with fail-safe or fail-secure device operation.
• Ability to manage power for multiple access control devices.

Product Highlights

This power controller is designed to route power to devices such as mag locks and electric strikes, allowing flexibility in access control setups.

Product Information

Standard Information

• Brand: Altronix
• Manufacturer: Altronix Corporation

Technical Specifications

• Input Voltage: 12V AC, 12V DC, 24V AC, 24V DC
• Outputs: 8 outputs, each rated at 2.5A
• Dimensions: 1.3 inches height, 4.5 inches width, 8 inches depth
• Fire Alarm Disconnect: Individually selectable for each output
• Environmentally Friendly: Yes
• Limited Warranty: Lifetime
• NDAA Compliant: Yes
