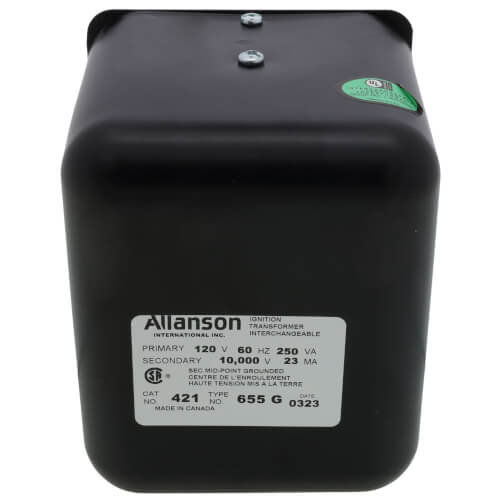

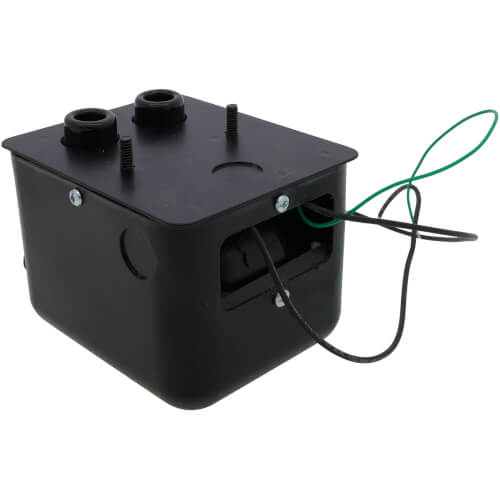

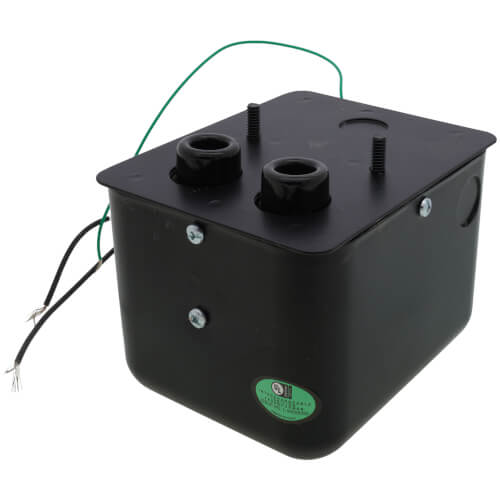

Allanson 421-655 Ignition Transformer for Power Flame Burners

Product Description

The Allanson 421-655 Ignition Transformer is designed for use with Power Flame burners. It operates at a primary voltage of one hundred twenty volts and provides a secondary voltage of ten thousand volts. The transformer is built to ensure optimal performance and safety in various heating applications, meeting both American and European standards for noise emission and EMI/RFI protection.

• Primary Voltage: 120 volts
• Secondary Voltage: 10000 volts
• Meets EMI and RFI protection standards

Product Highlights

This ignition transformer features a single porcelain design and operates quietly and safely, making it suitable for a wide range of burners.

Product Information

Standard Information

• Part Number: 421
• Type: 655
• Burner Brand: Power Flame

Technical Specifications

• Voltage: 120 volts
• Current (mA): 23
• Power (VA): 250
• Hertz: 60
• Ground Type: Mid Point Ground
• Weight: 9.345 lbs
• Shipping Dimensions: 7.45 inches (Depth) x 5.65 inches (Width) x 5.45 inches (Height)
• Ground Type: Mid Point Ground
