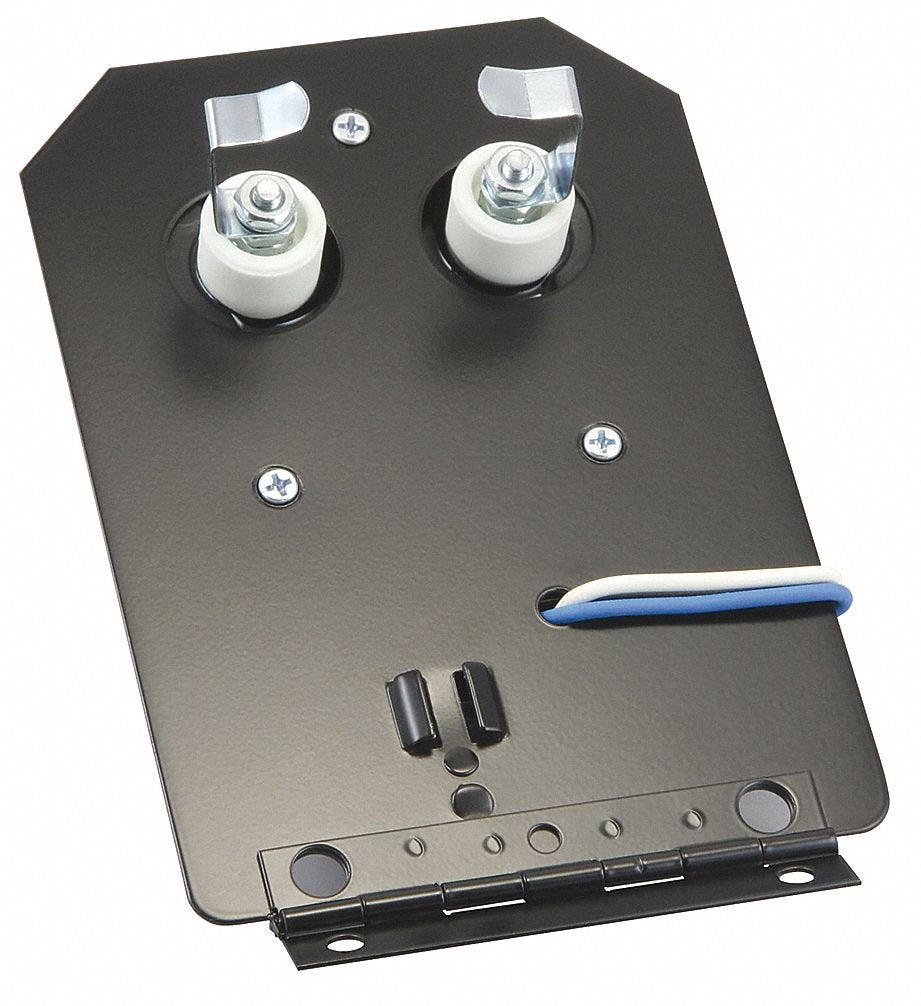

Allanson 2275-630 Oil Burner Ignitor, End Hinge

Product Description

The Allanson 2275-630 Oil Burner Ignitor features an end hinge design. This ignitor operates on a primary voltage of one hundred twenty volts and provides a peak secondary voltage of seventeen thousand five hundred volts. It is designed for use with Carlin model fifty-nine, one hundred, and one hundred one oil burners.

• Low operating temperature
• Extended life expectancy
• Energy efficient

Product Highlights

The Allanson oil burner ignitor ensures reliable ignition while reducing energy consumption compared to traditional ignition transformers.

Product Information

Standard Information

• Brand: Allanson
• MPN: 2275-630

Technical Specifications

• Primary Voltage: 120V AC
• Secondary Voltage: 17.5 kV
• Amperage: 45 mA
• Power Rating: 150 VA
• Hertz: 50/60
• Mounting Type: End hinge
• Compatible Burners: Carlin 99, 100/1, CRD
• Low Operating Temperature: Yes
• Certifications: UL and CSA Listed
