AirMate 160_08X04-W 8 x 4 Ceiling/Side Wall Register

Product Description

The AirMate 160_08X04-W is a ceiling or side wall register measuring eight inches by four inches. This product features lanced face construction with 2-way deflection. It includes an integral multi-shutter damper operated by a metal lever. The steel construction is coated in a bright white enameled finish.

• Nominal Size: Eight Inches Width x Four Inches Height
• Material: Steel
• Application: Residential Heating and Cooling

Product Highlights

This register is designed for HVAC applications, providing efficient airflow and temperature control in residential spaces.

Product Information

Standard Information

• Manufacturer: AirMate
• Type: Ceiling/Side Wall, Lanced Face

Technical Specifications

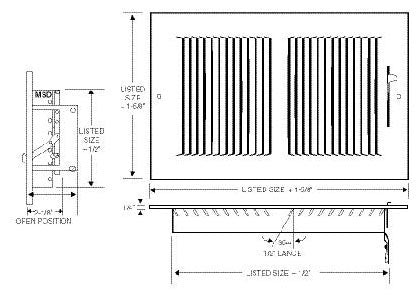

• Overall Dimensions: Nine and five-eighths inches Width x One and three-eighths inches Depth x Five and five-eighths inches Height
• Fin Spacing: One-half inch
• Fin Angle: Forty degrees
• Deflection: Two-way
• Material: Steel
• Finish/Color: Bright White Enameled
• Inclusions/Features: Integral Multi-Shutter Damper
• Actuation Type: Multi-Shutter Damper with Metal Lever
