AGF AGF1011A.2 TESTanDRAIN 1011 2 in NPT

Product Description

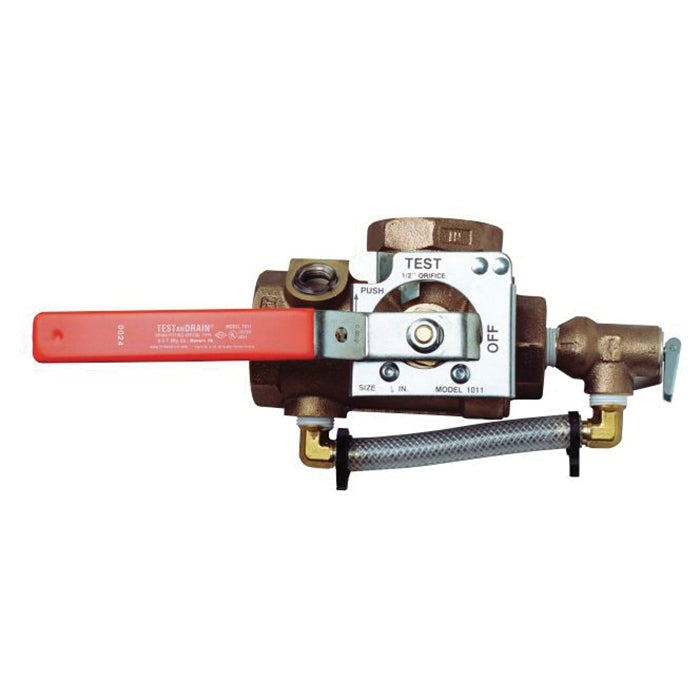

The AGF AGF1011A.2 is a sectional floor control test and drain valve made from bronze. This valve is equipped with a pressure relief valve and is rated for three hundred psi. It is designed for use in wet fire sprinkler systems, allowing for effective testing and draining.

• Lightweight and compact design
• One-handle operation for ease of use
• Includes a tamper-resistant test orifice

Product Highlights

This model is essential for maintaining fire sprinkler systems. It simplifies the testing and draining process.

Product Information

Standard Information

• Brand: AGF
• Manufacturer: AGF Manufacturing

Technical Specifications

• Model: 1011
• Material: Bronze
• Ball Material: Chrome-Plated Brass
• Connection Size: 2 in
• Connection Type: NPT
• Pressure Rating: 300 psi
• Seat Material: Impregnated Teflon
• Stem Material: Rod Brass
• Dimensions: 8-15/16 in L x 10-7/8 in H
• Sub Brand: TESTanDRAIN
• Applications: For systems requiring pressure relief valve
• Standards/Certifications: cULus, UL and ULC listed, FM approved, NYC-BSA No. 720-87-SM, NFPA-13, NFPA-13R and NFPA-13D compliant
