AGF 7900AAV Automatic Air Vent 1 inch

Product Description

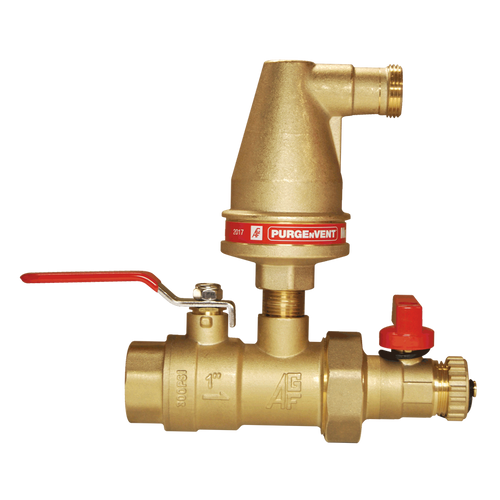

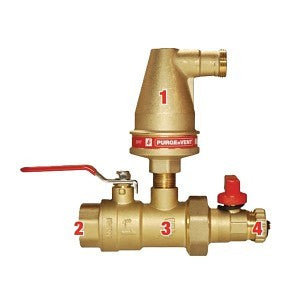

The AGF PURGEnVENT Model 7900AAV is an automatic air vent designed specifically for wet fire sprinkler systems. This device includes a one inch isolation ball valve, a barrel strainer, and a purge valve. It functions to prevent corrosion by automatically releasing trapped air, in compliance with NFPA 13 code requirements.

• Prevents corrosion by automatic air venting
• Meets NFPA 13 standards for wet pipe systems
• Designed for rapid air purging and vacuum breaking

Product Highlights

This automatic air vent optimizes the performance of sprinkler systems by ensuring air is vented without leakage.

Product Information

Standard Information

• Brand: AGF Manufacturing
• Vendor Part Number: 7900AAV

Technical Specifications

• Connection: Threaded
• Material: Brass
• Automatic: Yes
• UL Certified: Yes
• FM Approved: Yes
• Size: 1 inch
• Application: Wet Fire Sprinkler Systems
• End Connections: NPT x NPT x GHT
• Fits Pipe Size: 1 in
• Height: 5-1/4 in
• Length: 6-5/8 in
• Number Of Pieces: 1 Piece
• Recommended Valve Application: Sprinkler Systems
• Valve Operator: Lever Handle
• Valve Type: Automatic Air Venting Valve
• Body Material: Forged Brass
• End Style: FNPT x Hose
• Nominal Size: 1 in
• Port Type: Standard
• Series: M7900AAV
• UNSPSC: 40141607
