AGF 5300A CollectanDrain MDL 5300 Auxiliary Drain

Product Description

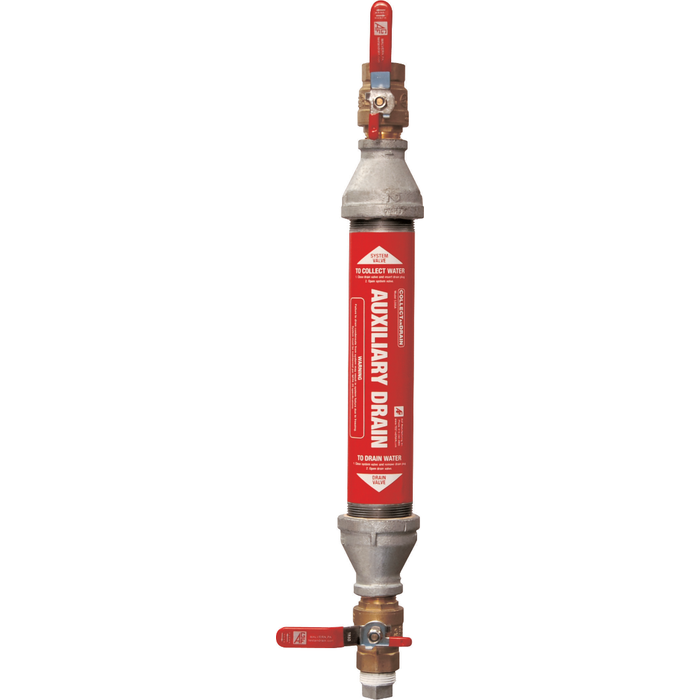

The AGF 5300A CollectanDrain Model 5300 is a pre-assembled auxiliary drain that meets NFPA 13 and 25 guidelines. It is designed specifically for effective drainage in a dry fire sprinkler system. The dual handles allow moisture to be drained with minimal pressure loss. This unit features integrated signage for easy identification and ensures a uniform appearance.

• Pre-assembled auxiliary drain for convenience
• Compliant with NFPA 13 and 25 codes
• Efficient drainage solution for dry fire sprinkler systems

Product Highlights

This product enhances the safety and efficiency of fire protection systems with its practical design and compliance with industry standards.

Product Information

Standard Information

• Brand: AGF Manufacturing
• Item Number: 5300-1

Technical Specifications

• Manufacturer Part Number: 5300A
• Model: Model 5300
• Valve Type: Auxiliary Drain Valve
• Number of Connections: 2 Connections
• Connection Type: National Pipe Thread (NPT)
• Body Material: Galvanized Steel
• Other Material: Brass Valves, Steel Handles
• Size: 1 inch NPT
• UL Listed: Yes
• FM Approved: Yes
• Rated Working Water Pressure: 300 PSI (UL) 600 PSI (FM)
• Water Oil Gas Pressure (WOG): 600 WOG
• Working Steam Pressure (WSP): 125 WSP
• Finish: Red
• Pre-Assembled: Yes
• Installation: Vertical
• Dimensions: 3.75 inches x 4.75 inches x 23.88 inches
• Weight: 8.5 pounds
• Unit of Measurement: Each
• Production Status: Active
