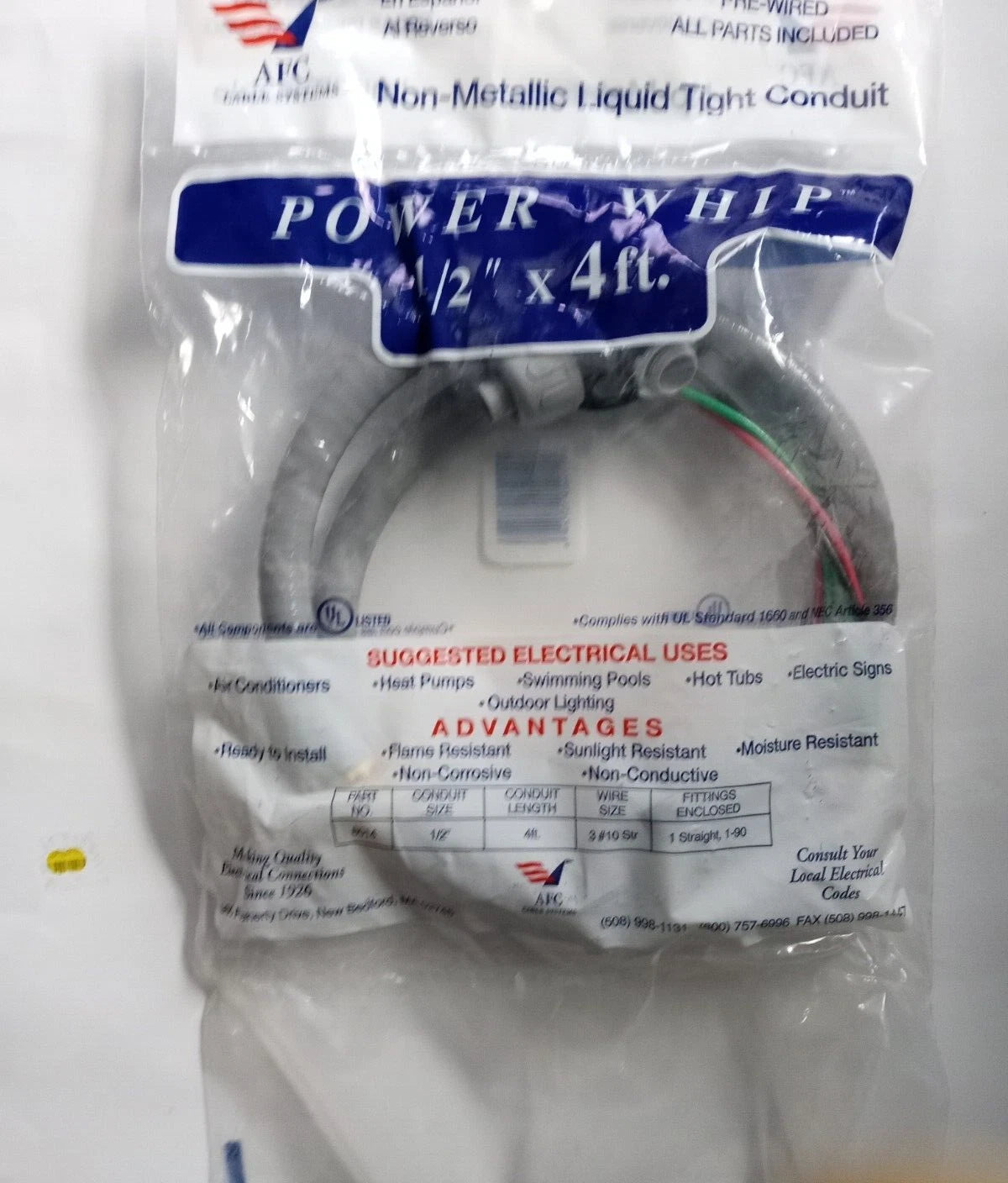

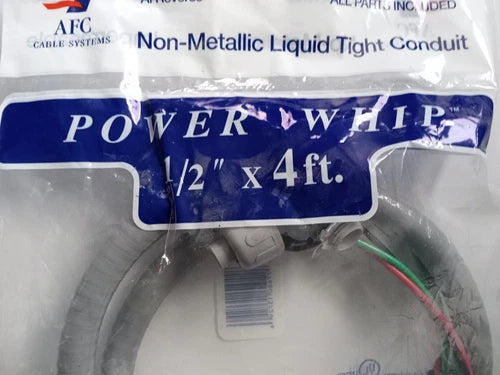

AFC CABLE SYSTEMS 8014 Non-Metallic Liquidtight Power Whip

Product Description

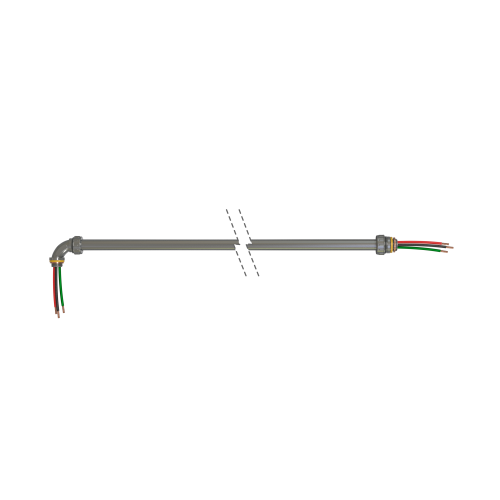

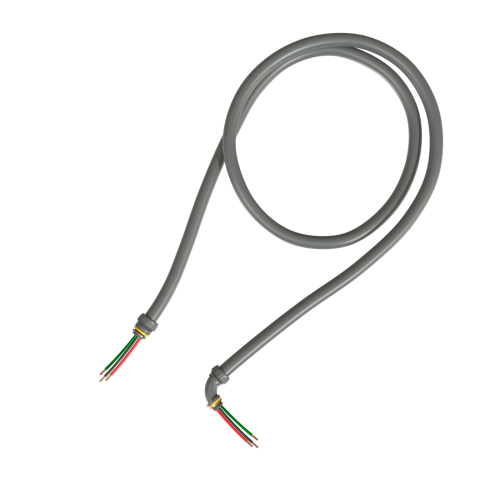

The AFC CABLE SYSTEMS 8014 is a non-metallic liquidtight power whip designed for durable electrical connections. This whip includes a flexible nonmetallic liquidtight conduit measuring one half inch by four feet (Type LFNC-B). Inside, it contains three stranded copper wires, specifically designed with THHN/THWN insulation in black, red, and green colors. The whip can handle a maximum voltage rating of 600 volts and a current rating of one to fifteen amperes with an impedance of twenty-five ohms.

This power whip comes complete with one straight non-metallic liquidtight connector and one ninety-degree angle non-metallic liquidtight connector, facilitating easy installation in various setups. Manufactured in the United States, it ensures high quality and reliability. It is packaged in barrels or cartons for safe storage.

• Utilizes flexible nonmetallic liquidtight conduit (Type LFNC-B).
• Includes straight and 90-degree angle non-metallic liquidtight connectors.
• Features three #10 stranded copper wires with THHN/THWN insulation.

Product Highlights

This product is suitable for use in environments requiring flexible and secure electrical installations.

Product Information

Standard Information

• Brand: AFC
• MPN: 8014

Technical Specifications

• Part Length: 4 ft
• Trade Size: 10-3 STR
• Conductor Materials: Copper
• Conductor Insulation Material: THHN/THWN
• Conductor Colors: Black, Red, Green
• Max Voltage Rating: 600V
• Current Rating: 1-15 A
• Impedance: 25 ohms
• Number of Conductors: 3
• Wire Gauge: 1 #10
