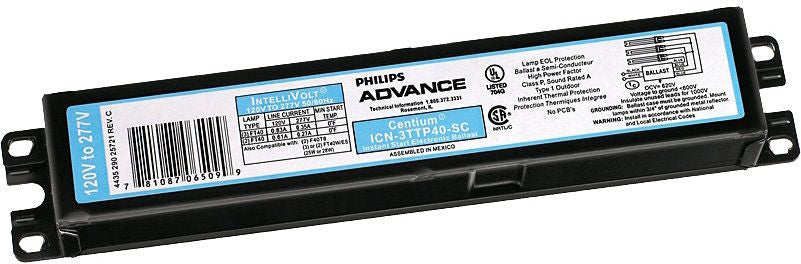

ADVANCE ICN3TTP40SC35M 120-277V ELEC BA

Product Description

The ADVANCE ICN3TTP40SC35M is a fluorescent electronic ballast designed for reliable performance. It operates at input voltages ranging from one hundred twenty volts to two hundred seventy-seven volts and is capable of handling up to three lamps with a maximum wattage of forty watts each.

• Input current of 0.83 amperes at one hundred twenty volts.
• Input power of ninety-nine watts at one hundred twenty volts, and ninety-seven watts at two hundred seventy-seven volts.
• Ballast designed for high frequency starting type with a power factor of 0.98.

Product Highlights

This ballast is ideal for commercial and industrial applications, providing dependable lighting control while ensuring energy efficiency.

Product Information

Standard Information

• Manufacturer: ADVANCE
• UPC: 78108706510

Technical Specifications

• Input Voltage: 120 to 277 V
• Input Current: 0.83 A at 120 V, 0.35 A at 277 V
• Input Power: 99 W at 120 V, 97 W at 277 V
• Frequency Rating: 50/60 Hz
• Max THD: 10%

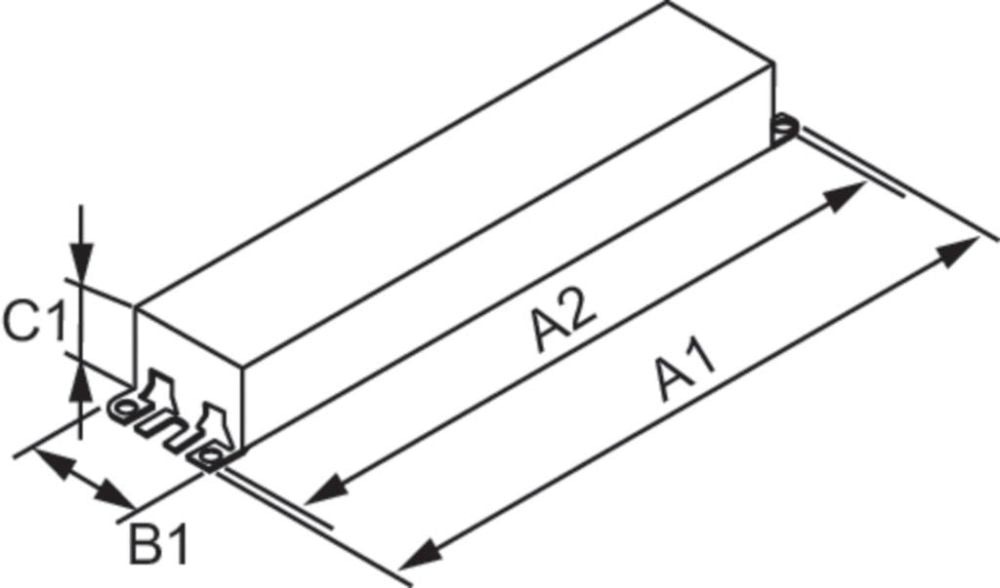

• Size: 9.5 inches L x 1.7 inches W x 1.18 inches H
• Minimum Starting Temperature: -18 °C
• Approval: UL, CSA
