Advance 71A8251001D 250W HPS

Product Description

The Advance 71A8251001D is designed for high pressure sodium lamps, providing reliable performance in outdoor applications. With a power rating of two hundred fifty watts, it operates on multiple input voltages including one hundred twenty, two hundred eight, two hundred forty, two hundred seventy-seven, and four hundred eighty volts AC.

• Input power of three hundred watts
• Minimum starting temperature of negative forty degrees Fahrenheit
• UL and CSA approved

Product Highlights

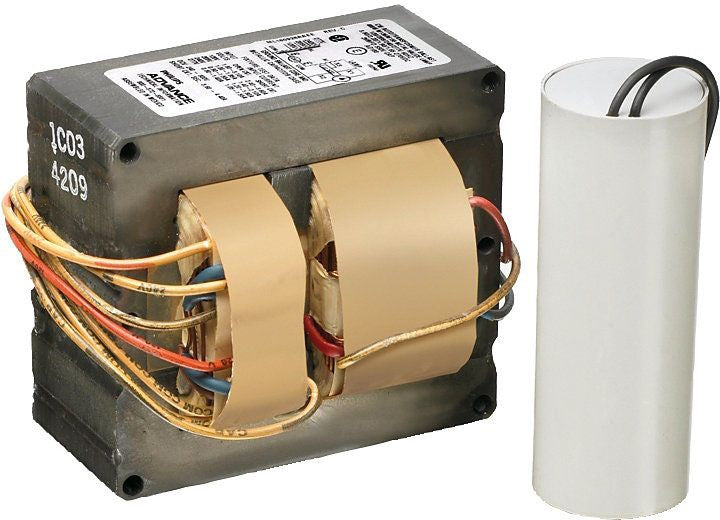

This ballast kit includes a magnetic ballast, coil, and core elements for efficient operation.

Product Information

Standard Information

• Manufacturer: Advance
• Snap-in Core Size: four inches by four inches

Technical Specifications

• Input Current: 2.7 amps at one hundred twenty volts
• Ballast Factor: 1
• Power Factor: 0.9
• Open Circuit Voltage: 188 volts
• Capacitance: 35 megafarads
• Temperature Rating: 105 degrees Celsius

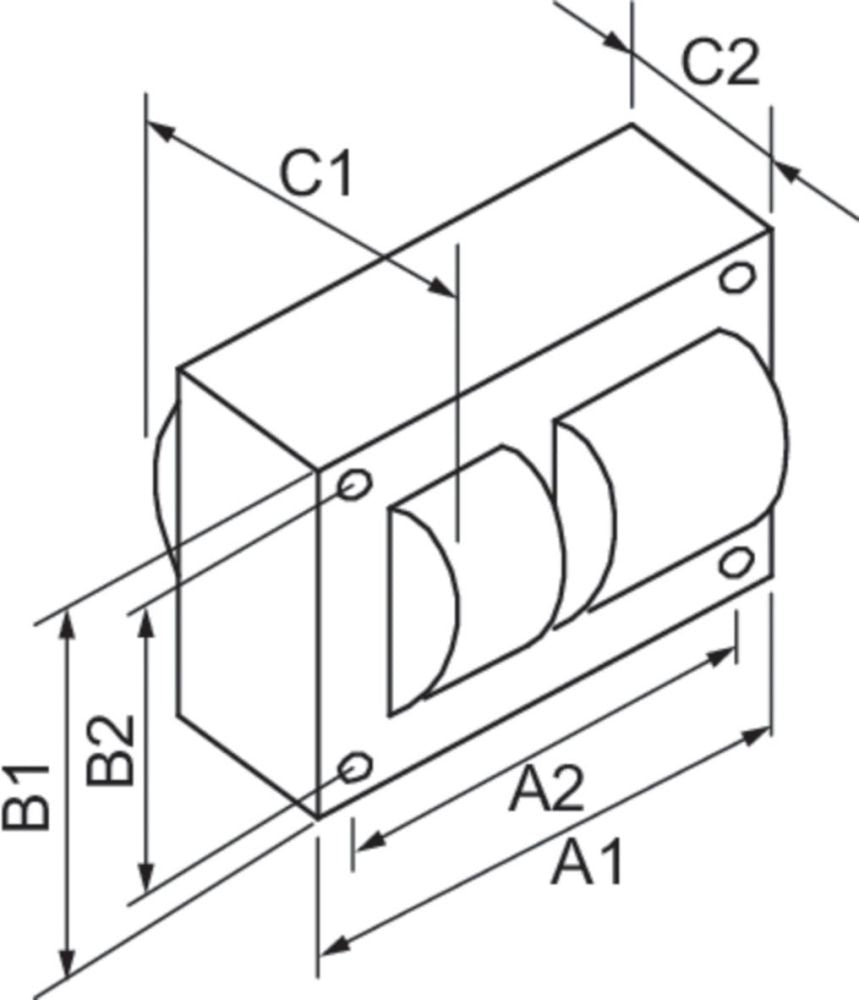

• Size: four point eight inches long by three point six inches wide by four point three inches high
• Approval: UL 1029, CSA 22.2
