Product Description

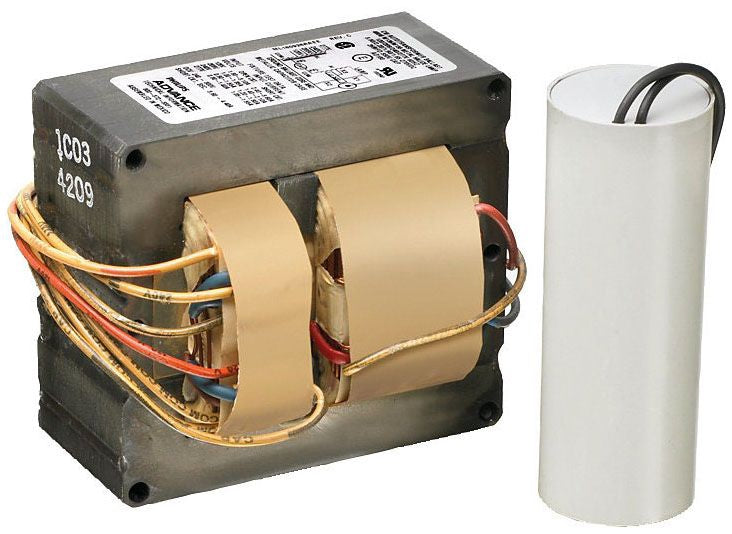

The ADVANCE 71A5750001D is a magnetic ballast designed for outdoor metal halide applications. It operates at various input voltages, including one hundred twenty, two hundred eight, two hundred forty, two hundred seventy-seven, and four hundred eighty volts AC. This ballast supports a current range of up to two point six amps and delivers a power input of two hundred ninety watts at a frequency of sixty hertz.
- Input Voltage: 120 to 480 Volt AC
- Wattage: 250 Watt
- ANSI Code: M58/C184
Product Highlights

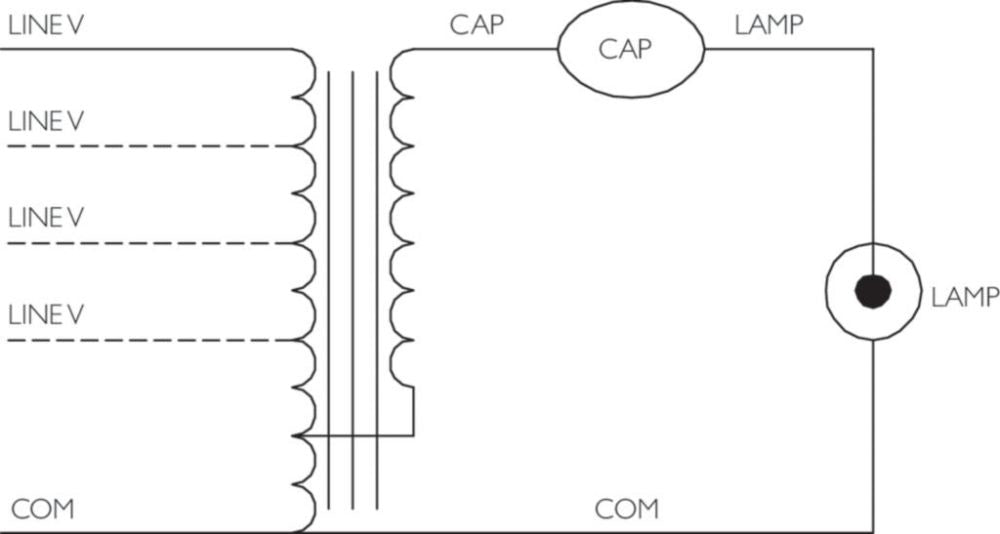

This ballast is suitable for outdoor use and features a constant wattage autotransformer circuit design. With a minimum starting temperature of negative twenty degrees Fahrenheit, it is ideal for various weather conditions.
Product Information
Standard Information
-
Manufacturer: ADVANCE
-
UPC: 78108711178
Technical Specifications
-
Input Current: 2.6/1.5/1.4/1.1/0.7 Amp
-

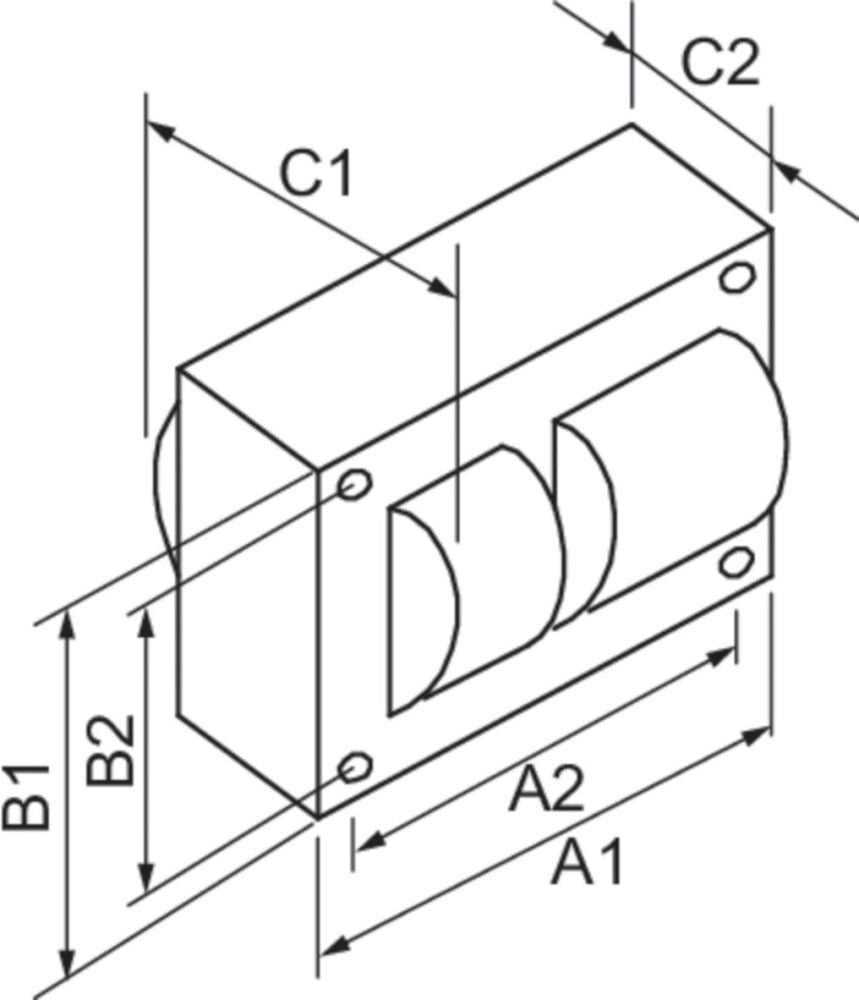

Length: 4.8 inches
-
Width: 3.1 inches
-
Height: 4.3 inches
-
Core Size: 4-1/4 inch x 4-3/4 inch
-
Ballast Factor: 1
-
Power Factor: 0.9
-
Temperature Rating: 105 Deg C (Capacitor)
