Advance 71A5593500DEE 175W Quad MH Blst

Product Description

The Advance 71A5593500DEE is a magnetic ballast designed for use with metal halide lamps. This component operates at a variety of input voltages and provides reliable power to your fixtures. It is compliant with UL and CSA standards, ensuring safe and efficient operation.

• Input Voltage: 120/208/240/277 V
• Input Power: 208 W
• Lamp Wattage: 175 W

Product Highlights

This ballast supports a range of lamp types and wattages, making it versatile for different lighting needs. It features super-constant wattage autotransformer design, ensuring stable output for consistent operation.

Product Information

Standard Information

• Manufacturer: Advance
• UPC: 78108707205

Technical Specifications

• Input Current: 1.78/1.08/0.89/0.76 A
• Frequency Rating: 60 Hz

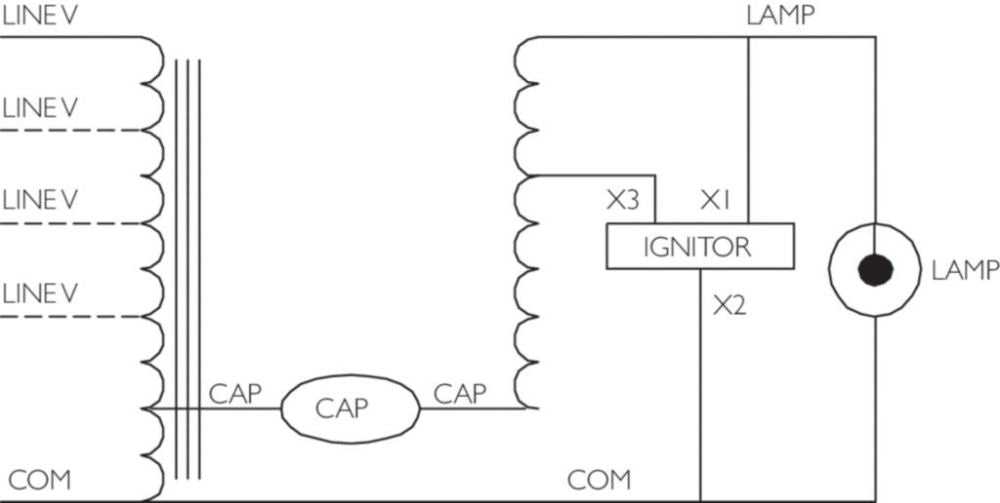

• Circuit Type: Super-Constant Wattage Autotransformer
• ANSI Code: M137/M152

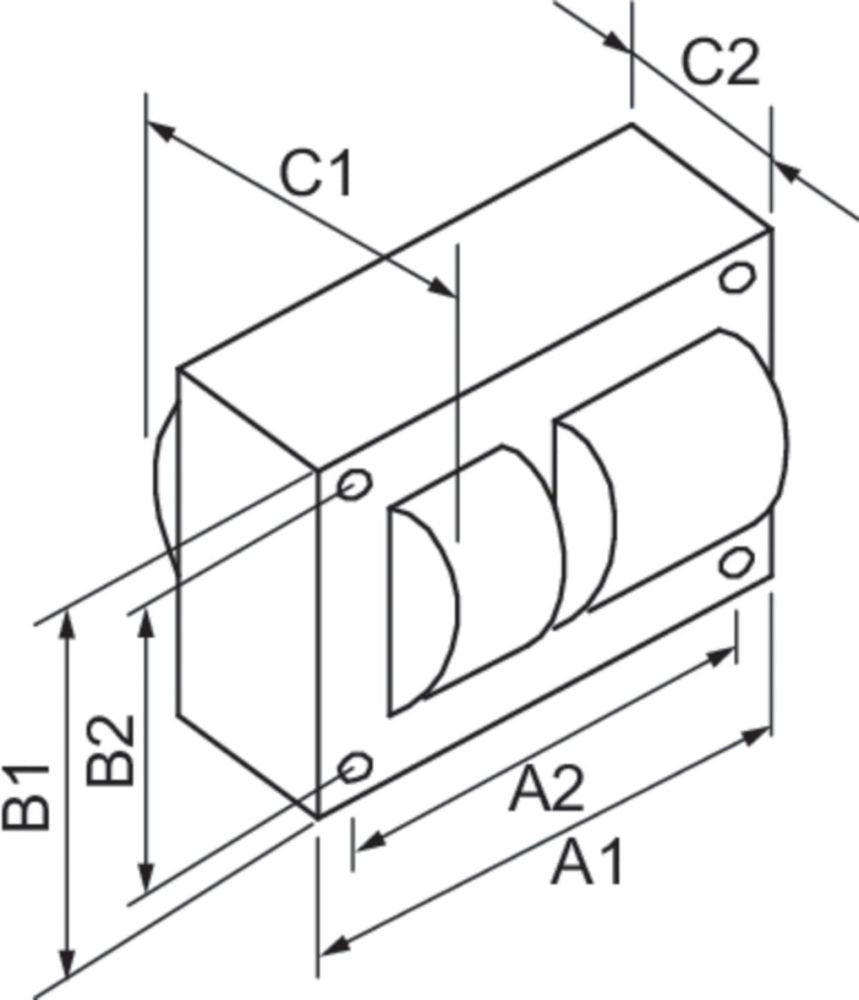

• Size: 3.9 inches L x 3.2 inches W x 2.8 inches H
• Insulation Class: H
• Igniter/Capacitor Temperature Rating: 105 Deg C
• Power Factor: 0.9
• Capacitor: 11 Microfarads
