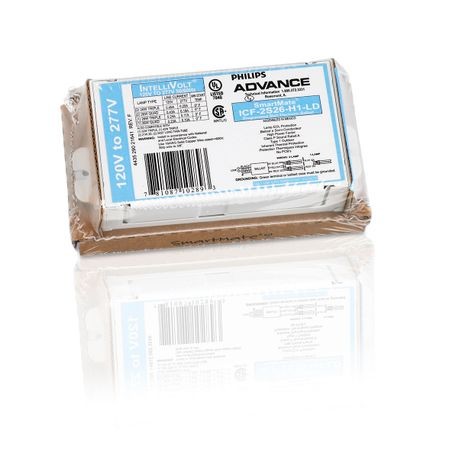

Advance 183319 ELE BALLAST (2) 26W CFL

Product Description

The Advance 183319 ballast is designed for 4-pin compact fluorescent lamps. This ballast supports a wide variety of lamp types including quad, triple-tube, circline, 2D, and long twin-tube lamps. Its efficient design helps to reduce inventory costs and enhances the wiring accuracy for easy assembly and installation.

• IntelliVolt input voltage range of 120-277V
• Suitable for operating with one or two lamps
• Color-coded connectors simplify installation

Product Highlights

This ballast is ideal for fixture manufacturers and retrofitters. It offers maximum versatility in outdoor applications and is a reliable replacement for traditional incandescent systems.

Product Information

Standard Information

• Brand: Advance
• Manufacturer: Advance Transformer

Technical Specifications

• Type: Electronic Hybrid
• Voltage: 120-277 Volt
• Wattage: 26 Watt
• Amperage: 0.19-0.43 Amp
• Width: 2.362 inches
• Height: 0.984 inches
• Length: 4.66 inches
• Weight: 0.373 lb
• Ballast Factor: 1
• Lamp Type: Compact Fluorescent
• Number of Lamps: 2
• Temperature Rating: 75 degrees C
• Power Factor: 0.98
