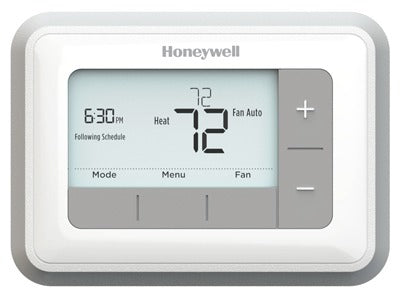

Ademco Inc RTH7560E1001/E 7-day Programmable Thermostat

Product Description

The ADEMCO INC RTH7560E1001/E is a flexible 7-day programmable thermostat designed for residential heating and cooling systems. It supports 7-day, 5-2 day, and one-week scheduling formats, giving HVAC technicians and homeowners multiple programming options to match occupancy patterns. The thermostat features an extra-large backlit display that shows current room temperature and set point simultaneously. A built-in adaptive learning function monitors heating and cooling cycle times to deliver the target temperature precisely when needed. Short cycle protection is included to guard compressor equipment from rapid on-off cycling. Power is supplied by 2 AA batteries, not included.

This thermostat is suited for residential installations where a low-voltage, battery-powered programmable control is required. It supports auto changeover from heat to cool mode and includes fan control with On, Auto, and Circulate settings. The Circulate mode keeps air moving through the duct system between conditioning cycles. Filter change and low-battery reminders assist with routine maintenance scheduling. Temporary and permanent hold settings allow manual override of the programmed schedule without losing stored programming. The real-time clock automatically adjusts for daylight saving time, and programming is retained in memory through power outages.

Key Features

• Flexible scheduling: 7-day, 5-2 day, or one-week programming modes
• Adaptive learning adjusts run times to hit set point temperatures on schedule
• Extra-large backlit display shows room temperature and set point simultaneously
• Auto heat-to-cool changeover with temporary and permanent hold settings
• Fan control with On, Auto, and Circulate modes
• Short cycle protection for compressor equipment
• Filter change and low-battery maintenance reminders
• Program memory retained during power outages; real-time clock with auto DST adjustment

Compatibility

Designed as an OEM-style replacement or new-install programmable thermostat compatible with most conventional residential heating and cooling systems using standard low-voltage wiring. Includes Honeywell Standard Connector S16 and mounting hardware.

Installation Notes

Installation should be performed by a licensed HVAC technician in accordance with local mechanical codes and the system manufacturer's wiring diagrams. Power down the air handler, furnace, or heat pump at the breaker and disconnect switch before removing the existing thermostat and making wiring connections. Do not mount the thermostat on an exterior wall, near supply registers, or in direct sunlight, as these locations will cause inaccurate temperature sensing. Insert 2 AA batteries after wiring is complete and before powering the system back on.

Technical Specifications

• Programming Modes: 7-day, 5-2 day, one-week
• Display: Extra-large backlit LCD, shows room temperature and set point
• Time Display: 12-hour or 24-hour selectable
• Temperature Display: Fahrenheit or Celsius selectable
• Fan Settings: On, Auto, Circulate
• Power Source: 2 AA batteries (not included)
• Short Cycle Protection: Included
• Weight: 3.65 pounds
• Unit of Measure: EA
• Package Quantity: 3

Standard Information

• Brand: ADEMCO INC
• Manufacturer Part Number: RTH7560E1001/E
