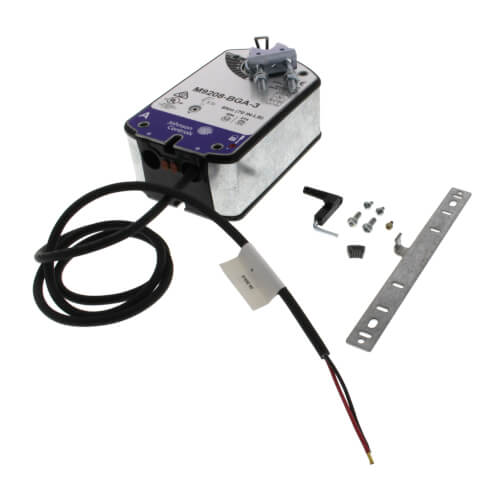

Johnson Controls M9208-BGA-3 Direct Coupled 70 lb-in Spring-Return

Product Description

The Johnson Controls M9208-BGA-3 is a direct coupled actuator designed for on/off control with a torque capacity of seventy pound-inches. Operating on a twenty-four volt power supply, this actuator features a spring-return mechanism for reliable positioning after power loss.

• Voltage: 24 VAC
• Power Consumption: 6.1 VA Running, 1.2 VA Holding
• Operating Conditions: -40°F to 140°F

Product Highlights

This actuator is suitable for HVAC applications where precise control is needed. Its design allows for reversible mounting and includes integral cables for easy installation.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: M9208-BGA-3

Technical Specifications

• Torque: 70 lb-in
• Electrical Connection: 48 in. 18 AWG appliance cable with 3/8 in. FMC connectors
• Housing: NEMA 2, IP54
• Weight: 3.5 pounds
• Dimensions: 6.35 inches (Length) x 8.4 inches (Width) x 4.45 inches (Height)
