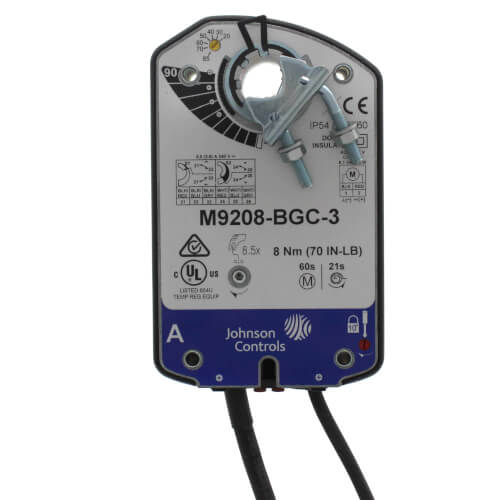

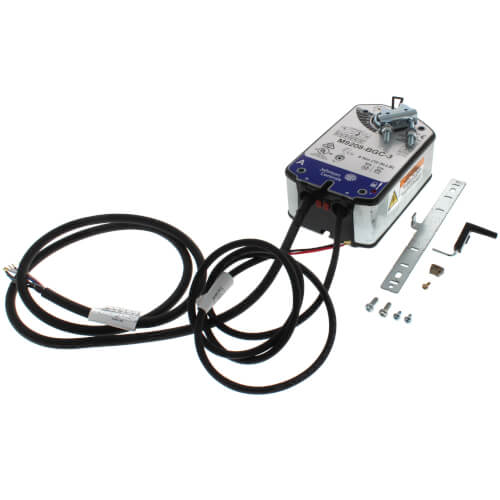

Johnson Controls M9208-BGC-3 Direct Coupled 70 lb-in Spring-Return

Product Description

The Johnson Controls M9208-BGC-3 is a 24VAC/DC On/Off Electric Spring Return Actuator designed for HVAC systems. It provides a torque rating of seventy lb-in. This actuator uses a direct-coupled design that allows for installation without the need for damper linkage. The actuator features a reversible mounting design and includes electronic stall detection for enhanced reliability.

• Seventy lb-in torque rating for reliable performance
• Direct-coupled design facilitates easy installation
• Reversible mounting for flexible configurations

Product Highlights

This actuator is suitable for controlling dampers effectively in various HVAC applications, ensuring optimum ventilation and air control.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: M9208-BGC-3

Technical Specifications

• Torque: 70 lb-in (8 Nm)
• Power Consumption: 6.1 VA Running, 1.2 VA Holding
• Auxiliary Switches: 2 SPDT
• Operating Conditions: -40 F To 140 F (-40 C To 60 C)
• Electrical Connection: 48 in. 18 AWG Appliance Cable with Integral 3/8 in. FMC Connectors
• Housing: NEMA 2, IP54
• Dimensions: Length six point five five inches, Width eight point three five inches, Height four point five inches
• Weight: Four point fifteen pounds
