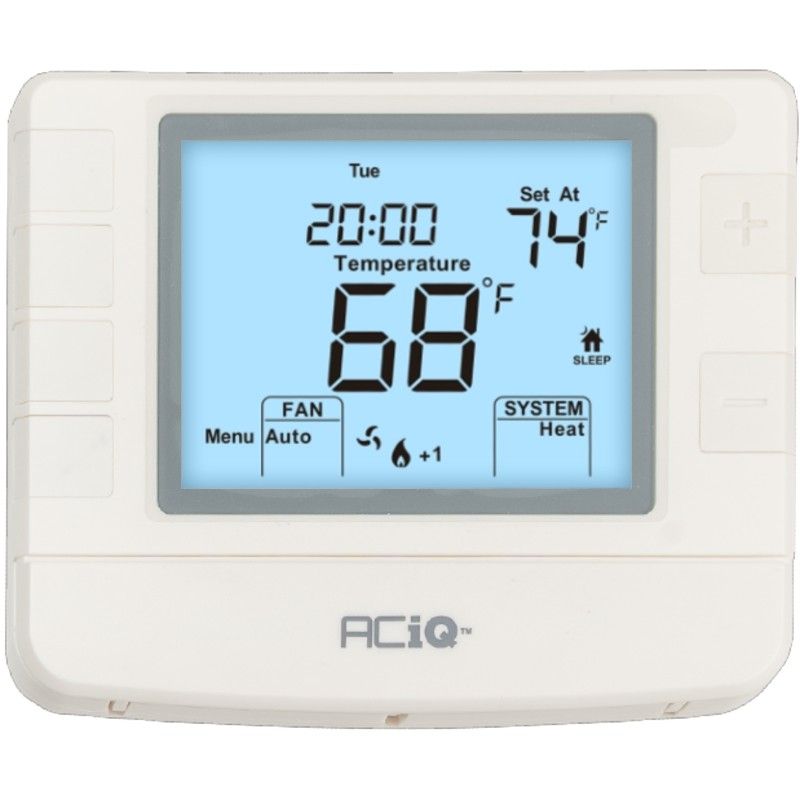

Aciq STN1320 2 Heat/1 Cool Non-Programmable Thermostat 24V or Battery

Product Description

The ACiQ STN1320 is a non-programmable thermostat for 2 heat / 1 cool systems that supports 24V or battery power. It provides a large backlit display and a 44F to 90F (7C to 32C) temperature control range with temperature measurement accuracy of +/-1 C (at 20 C). The unit is configurable for electric or gas setups and includes separate B and O terminals, swing adjustments, set point limits, and compressor delay protection.

• Supports 2-stage heat and 1-stage cool with separate heating and cooling swing adjustments, including second-stage adjustments
• Powered by 24V or battery; configurable for electric or gas systems with separate B and O terminals
• Large backlit display, toggleable filter change indicator, heating/cooling set point limits, room temperature calibration, and 5-minute compressor delay protection

Product Highlights

Non-programmable 2 heat/1 cool thermostat with 24V or battery power, 44F-90F range, and +/-1 C accuracy

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: STN1320

Technical Specifications

• Brand: ACiQ
• Model: STN1320
• Programmability: Non-programmable
• Power: 24V or battery
• Temperature control range: 44F - 90F (7C - 32C)
• Temperature measurement accuracy: +/-1 C (at 20 C)
• System configuration: Configurable for electric or gas setups
• Stages: 2 Heat / 1 Cool
• Terminals: Separate B & O terminals
• Filter indicator: Toggleable filter change indicator
• Set point limits: Heating and cooling set point limits
• Room temperature calibration: Room temperature calibration adjustment
• Compressor delay protection: Toggleable 5 minute compressor delay protection
• Display: Large display with bright blue/green/white backlight
• Capabilities: Heat pump capable
• Weight: 1.00 lb
