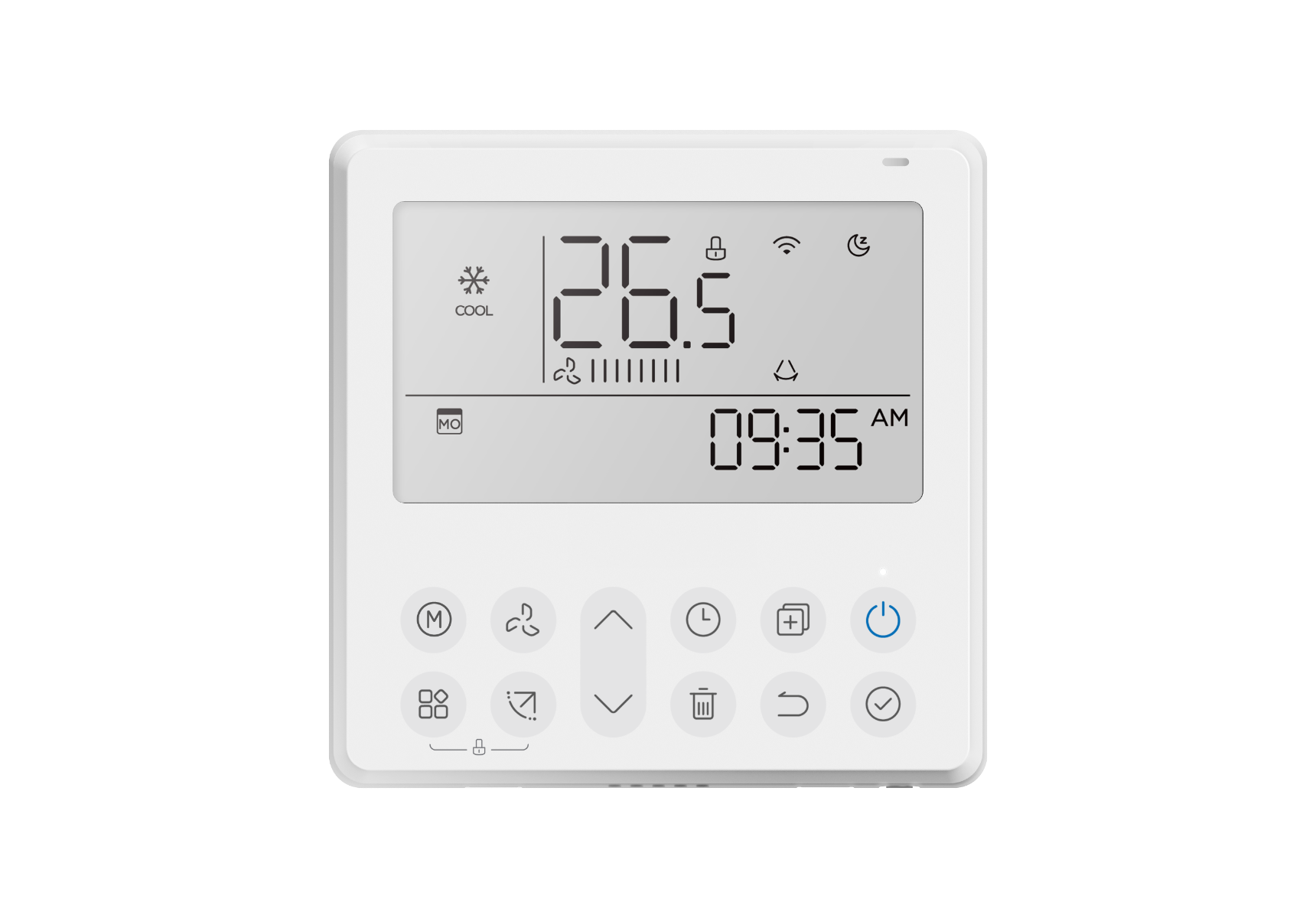

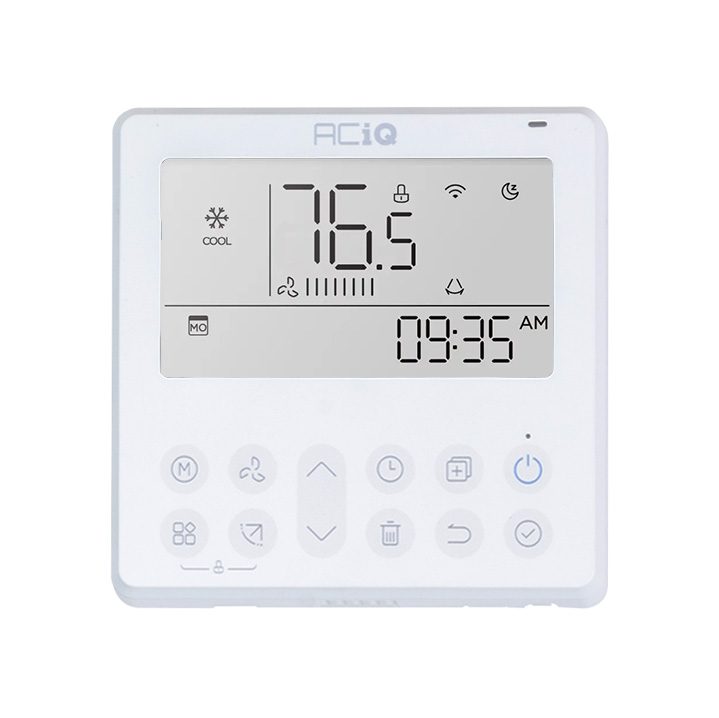

Aciq KJR-120N Wired Mini Split Thermostat

Product Description

The Aciq KJR-120N is a wired mini split thermostat that provides WiFi control for compatible Aciq ceiling cassette, concealed duct, and ducted air handlers. It includes an LCD room temperature display, malfunction/error code diagnostics, a weekly timer, and a compact enclosure. The unit uses a 4-way wire layout for simplified installation and is powered by DC 5V / 500 mA while operating on 2400–2483.5 MHz with transmit power under 20 dBm.

• Wired mini split thermostat with WiFi control; compatible with Aciq ceiling cassette, concealed duct, and ducted air handlers
• Power input DC 5V / 500 mA; wireless frequency 2400–2483.5 MHz with transmit power < 20 dBm
• LCD room temperature display, malfunction/error code diagnostics, weekly timer, and 4-way wire layout for easier wiring

Product Highlights

Wired mini split thermostat with WiFi, LCD display, diagnostic codes, weekly timer, and 4-way wiring for Aciq indoor units.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: KJR-120N

Technical Specifications

• Brand: Aciq
• Model: KJR-120N
• Product Type: Wired mini split thermostat with WiFi
• Compatibility: Aciq ceiling cassette, concealed duct and ducted air handlers
• Wireless Frequency: 2400-2483.5 MHz
• Wireless Transmit Power: < 20 dBm
• Input Power: DC 5V / 500 mA
• Operating Temperature: 0° to 45°C (32° to 113°F)
• Operating Humidity: 10% to 85%
• Display: LCD room temperature display
• Diagnostics: Malfunction/error code display for service diagnostics
• Timer: Weekly timer
• Wiring Layout: 4-way wire layout design
• Design Notes: Compact design
• Weight: 1.00 lb
