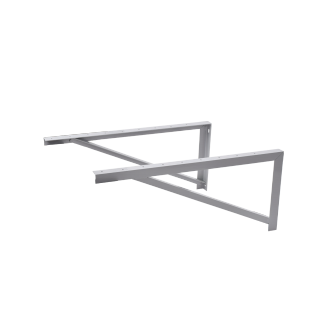

Aciq ACB-36 Wall Mount Condenser Bracket 36 Inches

Product Description

The ACIQ ACB-36 is a heavy-duty wall mount bracket designed to support outdoor condensing units in residential and light commercial HVAC installations. Built from 10-gauge steel with a powder-coated grey finish, each arm measures 36 inches in length and mounts the condensing unit via L-shaped brackets secured with bolts and anti-vibration washers. The bracket pair carries a 600-pound load rating, making it suitable for a wide range of condenser sizes. Pre-drilled holes accept standard masonry and structural anchors. HVAC technicians and installers use this bracket when wall mounting is preferred over pad or rooftop placement.

The ACB-36 is suited for exterior wall mounting of split-system condensing units in residential and light commercial settings. It is a strong fit for installations in coastal and storm-prone regions. The ACB line has been reviewed and approved by the Florida Building Commission and carries High Velocity Hurricane Zone approval, making it appropriate for HVHZ-designated areas where wind-load compliance is required by local code. Refer to the product certification documentation for full approval details.

Key Features

• 10-gauge steel construction for structural rigidity under load
• Powder-coated grey finish for corrosion resistance in outdoor environments
• 36-inch arm length provides clearance from wall surface to condensing unit
• 600-pound load rating per pair accommodates a wide range of residential and light commercial condensers
• Pre-drilled holes sized to accept standard installation anchors
• Florida Building Commission approved and High Velocity Hurricane Zone rated

Compatibility

Designed as an OEM-style wall mount solution for residential and light commercial split-system outdoor condensing units requiring a 36-inch bracket arm depth.

Installation Notes

Installation should be performed by a licensed HVAC technician or qualified contractor. Power to the condensing unit must be disconnected at the disconnect box before mounting or repositioning the unit on the bracket. Anchors, bolts, and anti-vibration washers are not included and must be sourced separately and rated appropriately for the mounting surface. Local building codes and wind-load requirements should be verified prior to installation, particularly in HVHZ-designated areas.

Technical Specifications

• Arm Length: 36 inches
• Load Rating: 600 pounds per pair
• Material: 10-gauge steel
• Finish: Powder-coated grey
• Approvals: Florida Building Commission approved, High Velocity Hurricane Zone (HVHZ) approved
• Warranty: 1 year

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: ACB-36
