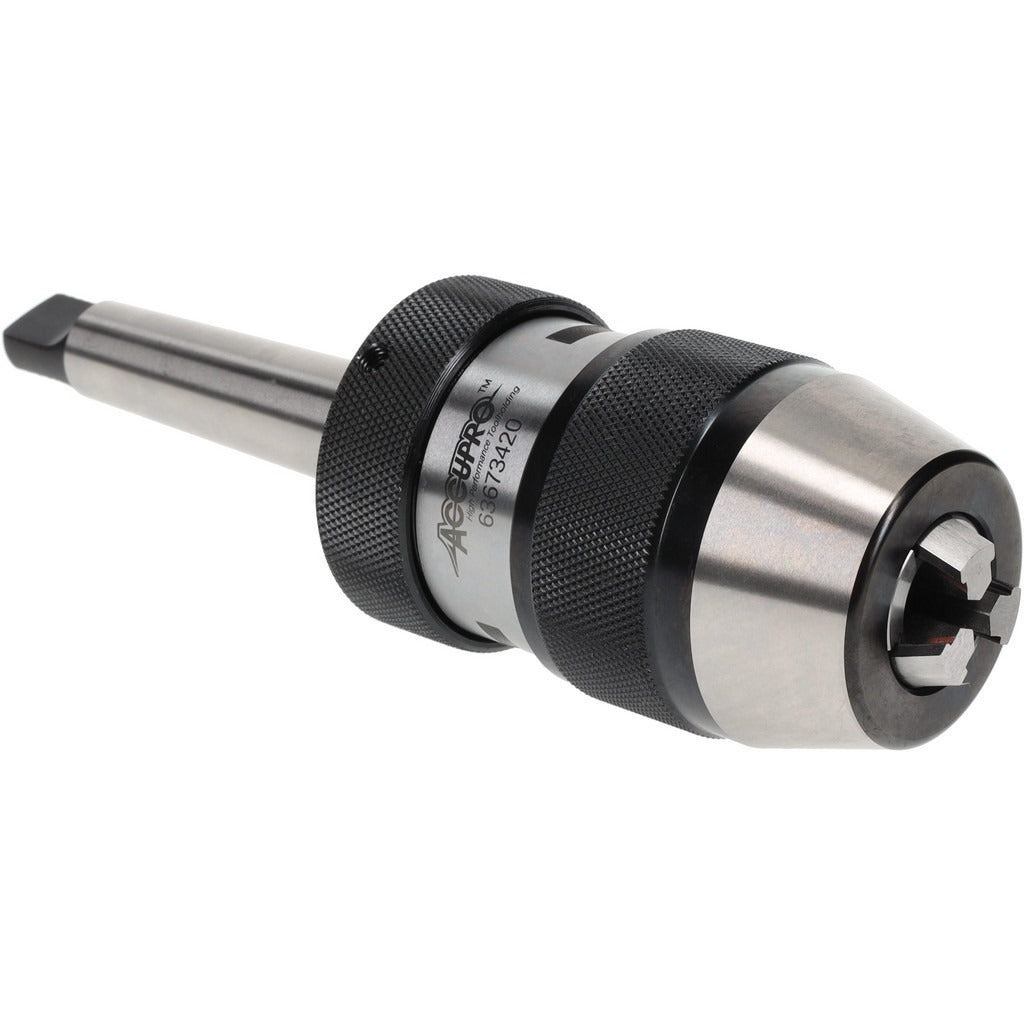

Accupro SPS1302000MSC Keyless Drill Chuck 2MT Taper Shank

Product Description

The ACCUPRO SPS1302000MSC is a keyless drill chuck designed for use with 2MT (No. 2 Morse Taper) integral shank spindles on drill presses, milling machines, and similar machine tool setups. It accepts bit shanks from 1/32 inch up to 1/2 inch, covering a broad range of twist drills, end mills, and other rotary cutting tools. The steel chuck body pairs with a keyless sleeve for fast, tool-free bit changes without sacrificing holding force. A ball bearing design supports smooth rotation up to 10,000 RPM, making it suitable for both production and maintenance shop environments. Machinists, toolroom technicians, and industrial maintenance trades are the primary installers of this component.

This chuck is intended for metalworking and fabrication applications where a Morse Taper No. 2 spindle is present. It fits standard drill press quills and milling machine spindles configured for 2MT tooling. The keyless design makes it a practical choice in high-turnover environments where operators change tooling frequently. With a sleeve diameter of 1.89 inches and a closed length of 3.622 inches, it fits within the envelope of most standard 2MT-compatible spindle setups in light industrial and job shop settings.

Key Features

• Keyless sleeve allows fast tool changes without a chuck key
• Capacity range of 1/32 inch to 1/2 inch covers common drill and bit shank sizes
• Ball bearing construction supports operation up to 10,000 RPM
• 2MT integral taper shank mounts directly into compatible Morse Taper No. 2 spindles
• Steel chuck body provides durability in metalworking environments
• Total Indicated Runout (TIR) of 0.0016 inch for consistent concentricity

Compatibility

Designed as an OEM-style replacement or upgrade chuck for machine tool spindles with a No. 2 Morse Taper (2MT) bore. Specific model compatibility was not provided in the product data; verify the spindle taper designation on the host machine before installation.

Installation Notes

Installation is performed by qualified machinists or industrial maintenance technicians familiar with Morse Taper tooling. Power down and lock out the machine at the main disconnect before removing or installing the chuck. Seat the taper shank firmly into the spindle bore using a draw bar or drift as appropriate for the host machine design. Inspect the taper surfaces for nicks or debris before seating, as contamination on the mating taper will affect runout and holding force.
