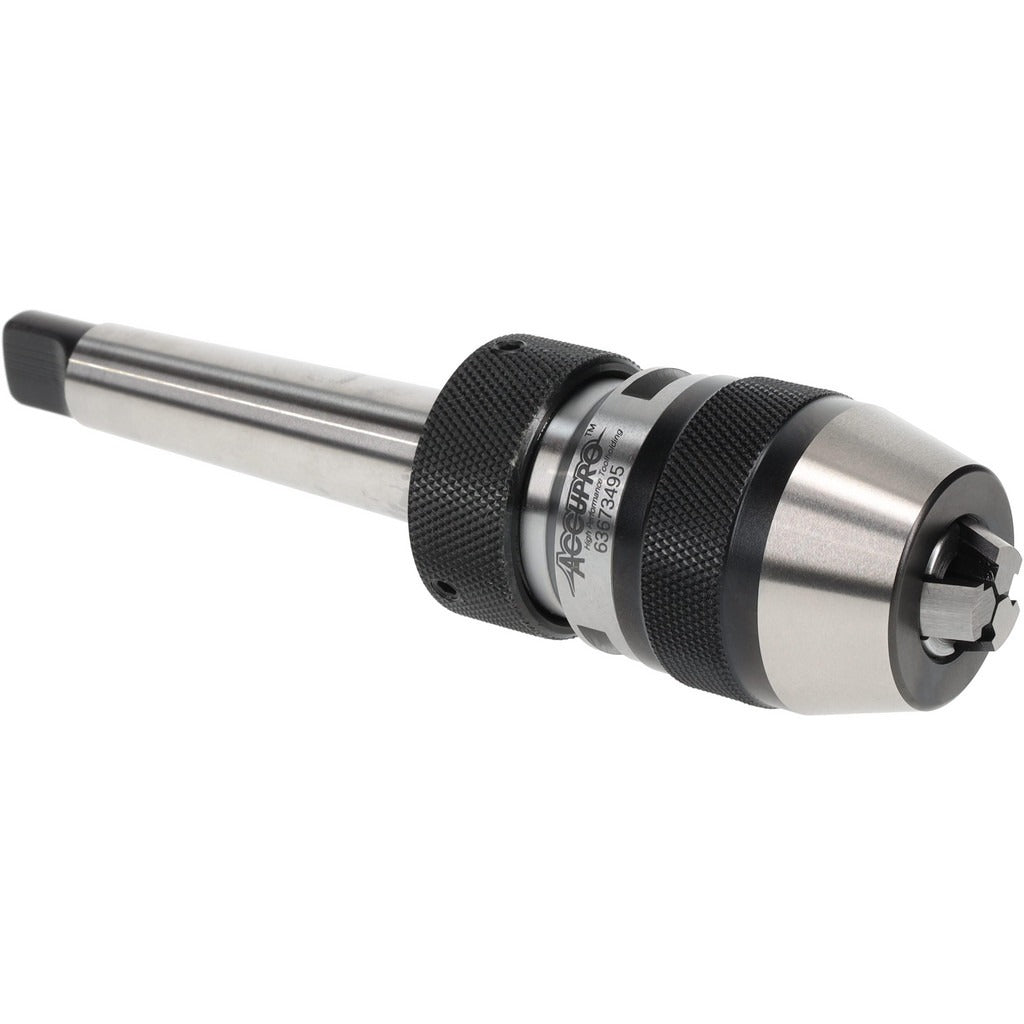

Accupro SPS0802000MSC Keyless Drill Chuck 2MT Taper Shank

Product Description

The ACCUPRO SPS0802000MSC is a keyless drill chuck designed for use on drill presses, milling machines, and CNC equipment where a Morse taper shank interface is required. It accepts drill bits and round-shank tooling from 1/64 inch up to 5/16 inch in diameter, with a maximum decimal capacity of 0.3125 inches. The integral shank mount uses a 2MT (No. 2 Morse Taper) taper shank, eliminating the need for a separate arbor. Ball bearing construction supports smooth, consistent rotation at speeds up to 17,000 RPM, making this chuck suitable for high-speed light drilling operations in both production and toolroom environments.

This chuck is well-suited for small-diameter drilling operations on benchtop and floor-standing drill presses, knee mills, and similar machine tools equipped with a No. 2 Morse Taper spindle. Typical applications include precision hole-making in metal, wood, and plastic workpieces where runout control and secure toolholding at elevated spindle speeds are required. The keyless design allows rapid bit changes without a chuck key, reducing changeover time in production settings. Licensed machinists, toolroom technicians, and machine operators are the primary users of this type of chuck.

Key Features

• Keyless operation allows fast, tool-free bit changes
• Capacity range of 1/64 inch to 5/16 inch suits small-diameter drilling work
• No. 2 Morse Taper (2MT) integral shank mounts directly into compatible spindles without a separate arbor
• Ball bearing construction for smooth rotation and reduced vibration
• Maximum spindle speed of 17,000 RPM supports high-speed drilling applications
• Total Indicated Runout (TIR) of 0.0016 inches for accurate, repeatable hole placement

Compatibility

Designed for machine tool spindles with a No. 2 Morse Taper (2MT) socket. Confirm your spindle taper size before installation, as 2MT is not interchangeable with 1MT, 3MT, or other taper standards.

Installation Notes

Installation should be performed by a qualified machinist or machine operator. Power down and lockout the machine at the main disconnect before installing or removing the chuck from the spindle. Clean the taper socket and the chuck shank thoroughly before seating to ensure full contact and accurate runout. Use a proper drawbar or drift pin according to the machine manufacturer's instructions to seat and remove the chuck safely.
