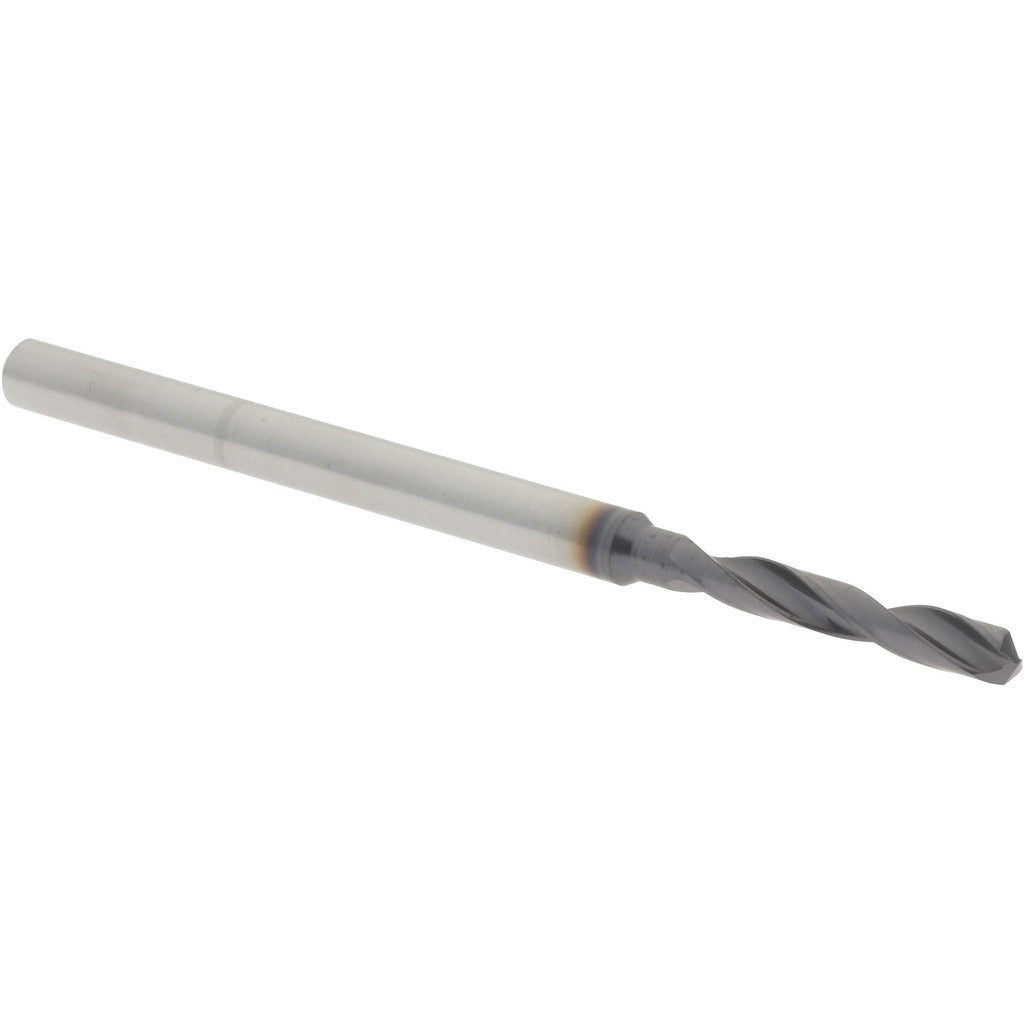

Accupro 63310213 Jobber Drill Bit Wire 41 Solid Carbide

Product Description

The ACCUPRO 63310213 is a solid carbide jobber-length drill bit designed for high-performance drilling in demanding applications. It carries a wire gauge size of 41, which equals 0.0960 inches in decimal, and features a 140-degree notched point angle for fast, accurate entry with reduced thrust. The AlTiN coating provides thermal resistance and extends tool life when cutting hard or abrasive materials. At 2 inches overall length with a 0.624-inch flute length and a straight-cylindrical 1/8-inch shank, this bit is built for precision work in tight-clearance setups. It is suited for machinists, toolmakers, and maintenance technicians who require consistent performance in production or repair environments.

This drill bit is appropriate for use in CNC machining centers, drill presses, and hand-held power tools with compatible collets or chucks that accept a 1/8-inch straight shank. It handles a maximum drilling depth of 0.500 inches and falls within the 0.0500 to 0.1000 inch diameter range, making it well-suited for small-diameter hole work in ferrous metals, stainless steel, cast iron, and similarly hard workpiece materials. The right-hand spiral flute and web-thinned, parallel-web configuration promote efficient chip evacuation and reduce walking at entry.

Key Features

• Wire size 41 (0.0960 inches) with 140-degree notched point for fast, accurate engagement
• Solid carbide construction for rigidity and wear resistance in hard materials
• AlTiN coating provides high-heat resistance, extending tool life in dry or semi-dry cutting
• Web-thinned parallel web reduces drilling thrust and improves chip flow
• Right-hand regular spiral flute ensures reliable chip evacuation
• 1/8-inch straight-cylindrical shank for broad collet and chuck compatibility

Compatibility

Designed as a high-performance replacement or production drill bit for applications requiring a wire size 41 diameter within the 0.0500 to 0.1000 inch drill bit size range, compatible with any toolholder or chuck accepting a 1/8-inch straight-cylindrical shank.

Installation Notes

Secure the shank fully in the collet or chuck before use and verify runout is within acceptable limits for the application. Power down all equipment before changing tooling. Confirm the toolholder bore matches the 1/8-inch shank diameter to prevent slippage. Coolant-through is not supported on this bit, so appropriate chip clearing intervals should be observed during deep or interrupted cuts.
