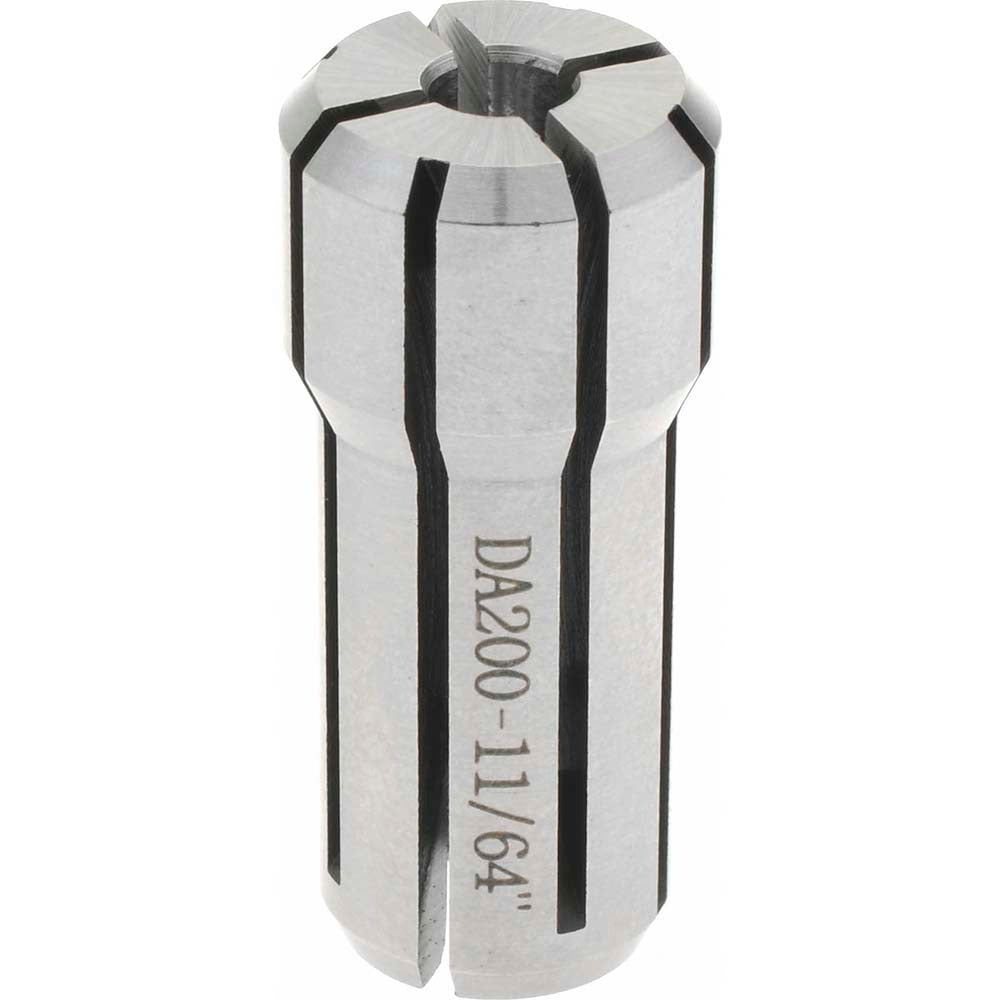

Accupro 586313 DA200 Double Angle Collet 11/64 Inch

Product Description

The ACCUPRO 586313 is a double angle collet in the DA200 series, designed for use in compatible double angle collet chucks on milling machines, machining centers, and similar CNC or manual toolholding setups. It accepts a 0.1719-inch (11/64 inch) tool shank and measures 1.193 inches in overall length with an overall diameter of 0.539 inches. This collet provides a secure, concentric grip on cutting tools and is installed by machinists and toolroom technicians as part of a precision workholding or toolholding system.

This collet is suited for production machining and toolroom environments where the DA200 collet system is already in use. It is typically installed in CNC machining centers, knee mills, and similar equipment equipped with DA200-style collet chucks. The 11/64 inch bore size accommodates standard round-shank end mills, drills, and other cutting tools within that diameter range.

Key Features

• DA200 collet series for compatibility with DA200-style collet chucks
• 11/64 inch (0.1719 inch) bore accepts standard round-shank cutting tools
• 1.193 inch overall length for consistent tool projection
• 0.539 inch overall diameter fits within DA200 chuck specifications
• Sold individually (package quantity of 1)

Compatibility

Designed as an OEM-style replacement or direct-fit collet for toolholding systems that accept DA200 series double angle collets with an 11/64 inch bore size.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. The collet should be seated cleanly in the chuck body with no chips or debris present before tightening. Use the appropriate spanner wrench or chuck key specified for the DA200 collet chuck — do not use improvised tools that could damage the collet or chuck taper. Ensure the spindle is fully stopped and the machine is locked out before changing collets.
