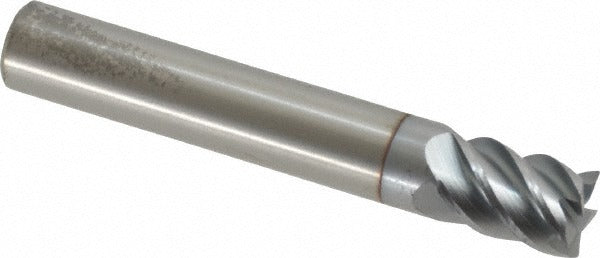

Accupro 2500411 Square End Mill 5/16 in 5 Flute Carbide

Product Description

The ACCUPRO 2500411 is a 5-flute solid carbide square end mill designed for high-performance milling in ferrous and non-ferrous materials. Built to stub-length proportions, it features a 5/16 inch mill diameter, a 7/16 inch length of cut, and a 2 inch overall length. The 45-degree helix angle promotes efficient chip evacuation and reduces cutting forces during aggressive passes. A TiCN coating adds surface hardness and lubricity, extending tool life in abrasive materials. The micrograin carbide substrate provides the rigidity and edge retention needed for tight-tolerance finishing and light roughing operations. This tool is installed by machinists, toolroom operators, and CNC programmers running vertical or horizontal machining centers.

This end mill is suited for slot milling, profiling, and peripheral milling in steel, stainless, cast iron, and similar materials where TiCN coating provides a wear and heat resistance advantage. The stub-length configuration minimizes deflection, making it well matched to shallow-depth applications where rigidity is a priority. The right-hand cutting and right-hand flute direction make it compatible with conventional CNC spindle setups. Its single-end design means it is replaced rather than re-indexed when worn.

Key Features

• 5-flute geometry increases feed rates and improves surface finish compared to standard 4-flute designs
• 45-degree helix angle promotes smooth chip flow and reduced cutting pressure
• TiCN coating improves wear resistance and tool life in ferrous materials
• Micrograin solid carbide substrate delivers consistent edge sharpness and dimensional stability
• Stub-length design minimizes overhang and deflection for tighter tolerances
• Centercutting capability allows plunge entry as well as peripheral and slot milling

Compatibility

Designed as a direct-fit replacement or standard tooling choice for CNC machining centers and manual mills accepting a 5/16 inch straight shank with a shank diameter tolerance of -0.0001/-0.0004 inches.

Installation Notes

Install in a compatible collet or end mill holder sized for a 5/16 inch shank; verify runout before cutting. Ensure the spindle is fully stopped and locked out before inserting or removing the tool. Follow machine manufacturer torque specifications for collet nuts. Confirm cutting direction is set to right-hand before initiating the program.
