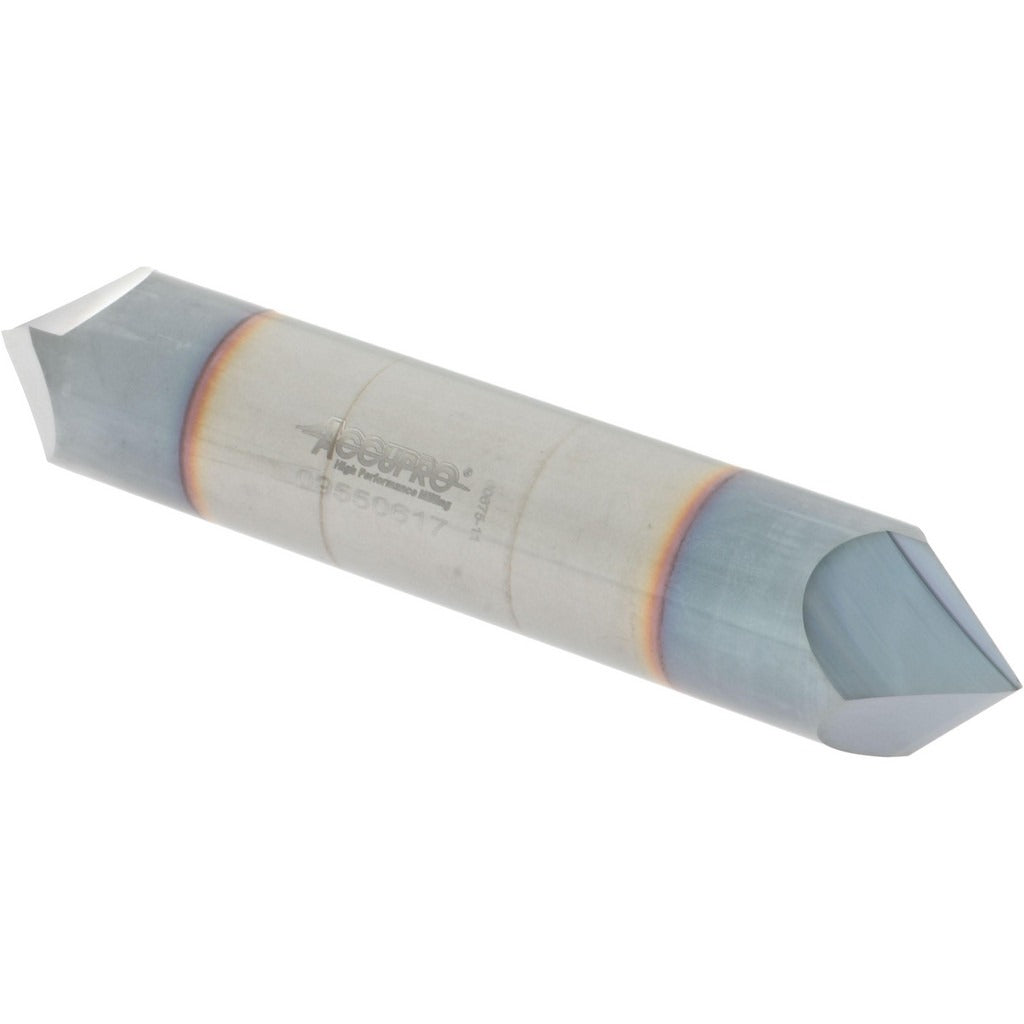

Accupro 2500291 Chamfer Mill 3/4 in 2 Flutes Solid Carbide

Product Description

The ACCUPRO 2500291 is a solid carbide chamfer mill designed for precise chamfering operations on metal and machined components. This double-end tool features a 3/4 inch cutter head diameter and a 3/4 inch shank diameter, giving it a balanced, rigid profile suited for CNC machining centers and manual mills. The TiCN coating reduces friction and extends tool life in ferrous and non-ferrous applications. With a 90-degree included angle and right-hand cutting direction, it produces clean, consistent chamfers in a single pass. Machinists and tool-and-die technicians are the primary users of this tool in production and job-shop environments.

This chamfer mill is intended for chamfering operations on workpieces where edge breaking, deburring, or angled seat preparation is required. The 4 inch overall length provides clearance for a range of setups, including fixtures and vise-mounted parts. The 2-flute geometry suits applications where chip evacuation is a priority, particularly in softer metals and plastics, while the solid carbide construction handles hardened steels and cast iron at elevated speeds.

Key Features

• Solid carbide construction for rigidity and wear resistance in demanding materials
• TiCN coating reduces friction and extends edge life compared to uncoated carbide
• 90-degree included angle for standard chamfering and edge-breaking applications
• Double-end design maximizes tool value with two usable cutting ends
• Right-hand cutting direction compatible with standard CNC and manual spindle rotation
• 2-flute configuration promotes chip clearance in interrupted cuts and softer materials

Compatibility

Designed for use in CNC machining centers, knee mills, and similar setups accepting a 3/4 inch straight shank toolholder or collet chuck. No specific compatible machine model numbers were provided in the product data.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician. Secure the 3/4 inch shank fully in a collet or end mill holder per the toolholder manufacturer's minimum engagement specifications before operating. Verify spindle speed and feed rate against the material being machined and the tool manufacturer's recommendations before cutting. Never exceed the rated speed for solid carbide tools, and inspect the cutting edges for chipping before each use.
