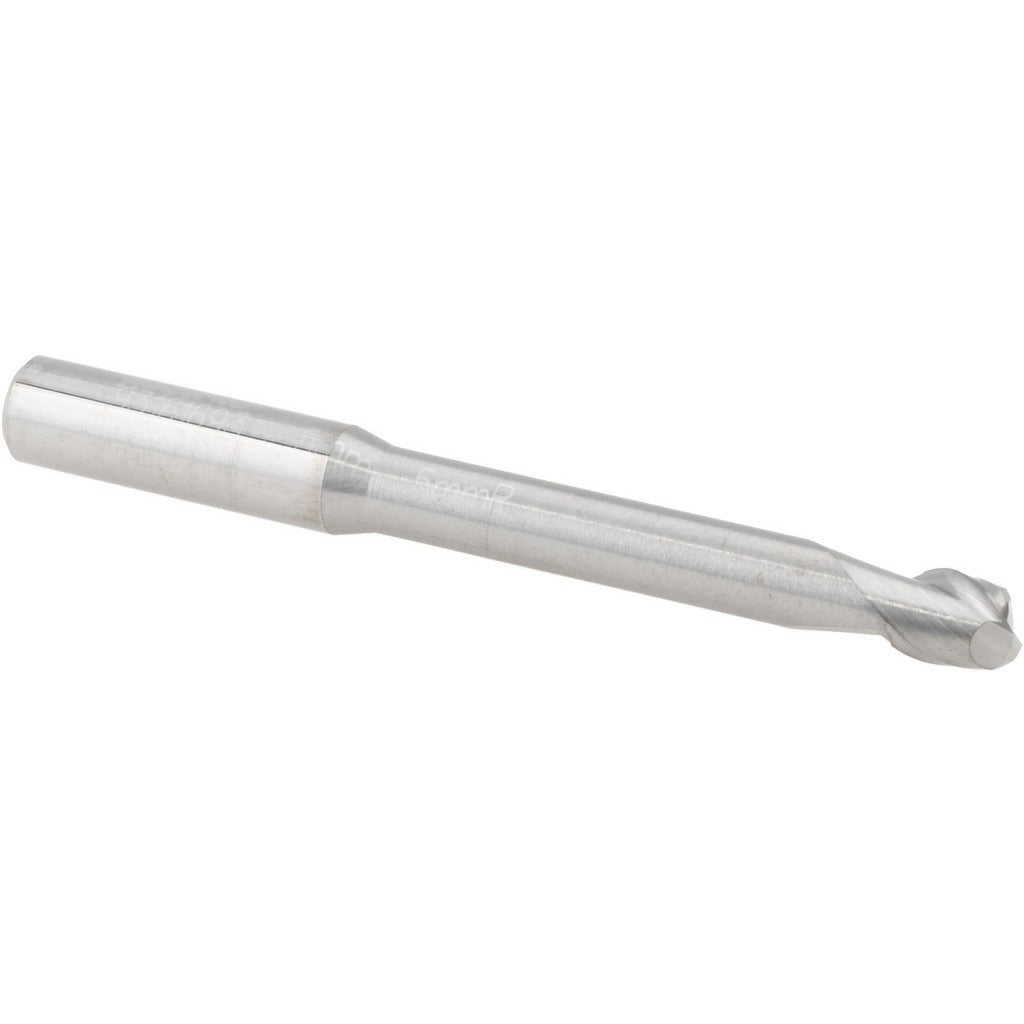

Accupro 12177367 Corner Radius End Mill 5mm 2 Flute Carbide

Product Description

The ACCUPRO 12177367 is a solid carbide corner radius end mill designed for precise milling operations in metalworking and machining applications. It features a 5 mm cutting diameter with a 0.50 mm corner radius and a 2-flute, right-hand spiral configuration that promotes efficient chip evacuation. The micrograin carbide construction delivers hardness and edge retention well beyond what high-speed steel tools can offer. With a bright uncoated finish and centercutting capability, this end mill can plunge directly into workpiece material. It is a single-end tool intended for CNC mills and machining centers operated by machinists and toolroom professionals.

This end mill suits general-purpose profiling, slotting, and contouring in ferrous and non-ferrous materials where a controlled corner radius is required to reduce stress concentrations on finished parts. The 5 mm length of cut and 30 mm reach length make it well suited for shallow-to-moderate depth passes in tight geometries. The 6 mm shank diameter fits standard ER collet chucks and end mill holders commonly found on vertical and horizontal machining centers.

Key Features

• Micrograin solid carbide construction for superior hardness and edge retention
• 0.50 mm corner radius reduces stress risers on finished part surfaces
• 2-flute right-hand spiral design promotes chip clearance in slotting and profiling cuts
• Centercutting geometry allows direct plunge entry into material
• Bright uncoated finish suitable for a wide range of workpiece materials
• Extended reach of 30 mm supports access to deeper features without tool holder interference

Compatibility

Designed as a standard single-end corner radius end mill with a 6 mm shank diameter, compatible with ER collet chucks, end mill holders, and shrink-fit tooling systems sized for 6 mm shank tooling on CNC machining centers and manual knee mills.

Installation Notes

Installation and tool changes should be performed by qualified machinists with the machine in a powered-down, locked-out state. Ensure the collet or tool holder is clean and free of debris before seating the shank to maintain runout tolerance. Verify that the tool projection length and reach requirements are confirmed against the part program before initiating a cut. Do not exceed the manufacturer-rated depth of cut for the diameter and material combination in use.
