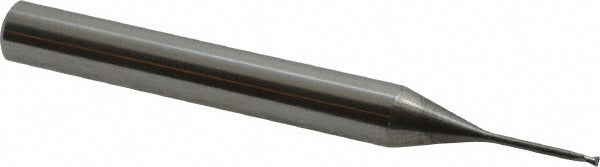

Accupro 12177329 Corner Radius End Mill 1mm 2 Flute Carbide

Product Description

The ACCUPRO 12177329 is a solid carbide corner radius end mill designed for high-precision milling operations in metalworking and machining environments. With a 1 mm mill diameter and a 0.1 mm corner radius, this single-end, centercutting tool is built for tight-tolerance work in small-feature applications. The micrograin carbide construction provides rigidity and wear resistance in demanding cutting conditions. A 30-degree helix angle promotes chip evacuation and smooth cutting action. This tool is sized for CNC machining centers and high-speed spindles where dimensional accuracy and tool life are critical. It is installed and operated by machinists and CNC programmers working in precision manufacturing.

This end mill is suited for finish milling, slotting, and profiling operations where a controlled corner radius is required to reduce stress concentrations in machined parts. The extended reach design, with a 10 mm reach length and 6 mm shank diameter, makes it practical for accessing recessed features and deep pockets. The bright uncoated finish is appropriate for use in ferrous and non-ferrous materials where coating adhesion or heat buildup is a concern. It is a single-quantity tool intended for production or prototype machining applications requiring tight geometric tolerances.

Key Features

• 1 mm mill diameter with 0.1 mm corner radius for small-feature, tight-tolerance milling
• Micrograin solid carbide construction for rigidity and extended tool life
• 2-flute, right-hand cutting with 30-degree helix for efficient chip evacuation
• Centercutting design allows plunge entry into workpiece material
• Extended reach with 10 mm reach length and 6 mm shank diameter
• Bright uncoated finish suitable for a range of ferrous and non-ferrous materials

Compatibility

Designed for use in CNC machining centers and milling machines accepting a 6 mm shank diameter. Suitable for precision metalworking applications requiring a single-end corner radius end mill with a 1 mm cutting diameter.

Installation Notes

This tool is installed by qualified machinists in CNC or manual milling setups. Ensure the spindle and tool holder are clean and free of debris before mounting. Verify shank runout and tool holder clamping torque per machine manufacturer specifications before cutting. Do not exceed rated cutting parameters for the workpiece material and machine setup.
