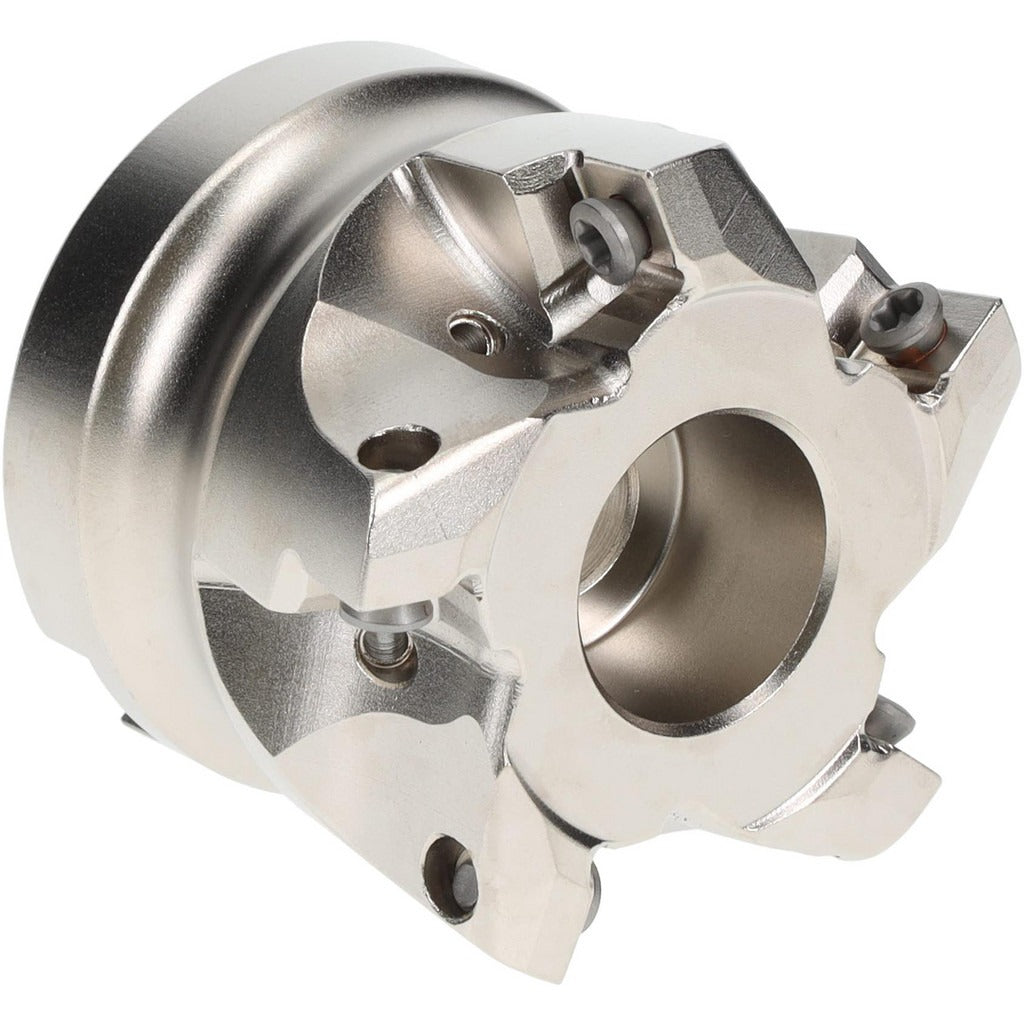

Accupro 07074107 High-feed Face Mill 2 Inch 5 Flute

Product Description

The ACCUPRO 07074107 is a 2-inch indexable high-feed face mill designed for aggressive material removal at shallow depths of cut. Built around the high-feed milling strategy, it is engineered to maximize feed rates per tooth while keeping axial depth of cut low, which reduces cutting forces and extends spindle and insert life. The cutter uses a screw-in insert holding method with XDLT and XDLX compatible inserts in size code 10. With 5 flutes and a right-hand cutting direction, it suits high-speed face and contour milling operations on machining centers. Rated to 23,500 RPM, this tool is appropriate for both roughing and semi-finishing passes in steel, cast iron, and similar workpiece materials.

This face mill is intended for use on CNC vertical and horizontal machining centers in job shop, production, and tool room environments. The 0.7500-inch arbor hole with a 0.3210-inch keyway width allows secure mounting on standard arbors. It is well suited for applications where maximizing table feed rates and reducing cycle time are priorities, particularly on multi-axis machines capable of ramping entries at up to 0.8 degrees. Machinists and CNC operators in manufacturing and metalworking trades are the primary installers and users of this tooling.

Key Features

• 2-inch cutting diameter supports face milling and high-feed contouring operations
• 5-flute design enables higher feed rates and improved surface finish per pass
• Maximum depth of cut of 0.0394 inches optimized for high-feed, low-force cutting strategy
• Compatible with XDLT and XDLX series inserts in size code 10 for broad insert availability
• Screw-in insert clamping provides secure, repeatable insert indexing
• Maximum spindle speed of 23,500 RPM supports high-productivity machining center use

Compatibility

Accepts XDLT and XDLX compatible inserts in size code 10. Mounts on standard 0.7500-inch arbors with a 0.3210-inch keyway. Series CI cutter style ASSM.

Installation Notes

This tooling should be installed and set up by a qualified machinist or CNC operator familiar with face mill arbor mounting procedures. Ensure the spindle and machine are powered off and at a full stop before mounting or indexing inserts. Use calibrated torque tools when tightening insert screws to manufacturer specifications supplied with the inserts. Confirm arbor and keyway fit before initiating any cutting program.
