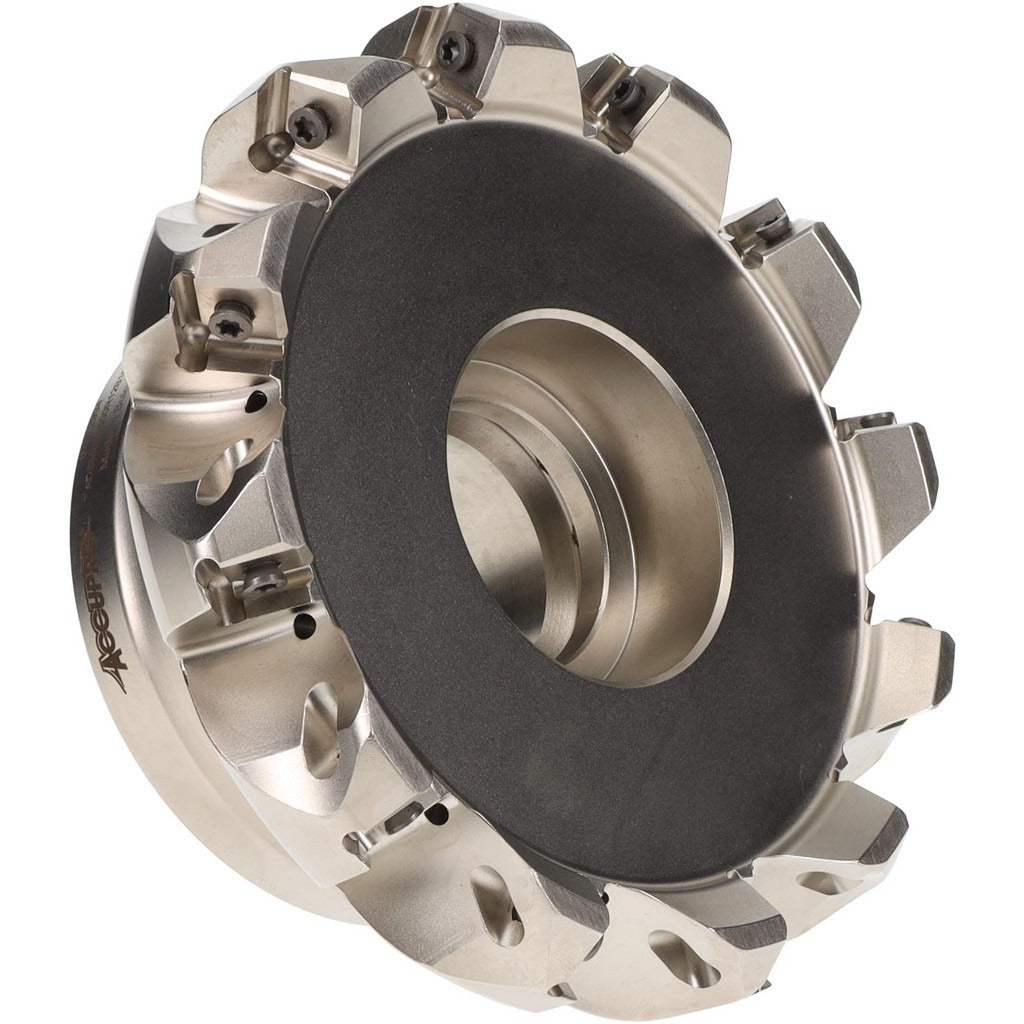

Accupro 07072994 Indexable Face Mill 5 Inch 12 Insert

Product Description

The ACCUPRO 07072994 is an indexable chamfer angle face mill designed for high-production milling operations on machining centers and manual horizontal mills. It accepts 12 indexable inserts of compatible insert size code 12 in a ADSM cutter style, with a 45-degree lead angle and a positive 20-degree rake angle for efficient chip formation and reduced cutting forces. The arbor hole diameter is 1.5 inches, making it suitable for standard arbor-style spindle setups. Coolant-through capability supports chip evacuation and tool life in demanding cuts. This cutter is installed and operated by machinists and CNC tooling specialists in production and job-shop environments.

This face mill is suited for use in medium to large machining centers running ferrous and non-ferrous materials where chamfer-angle face milling is required. The right-hand cutting direction and positive rake geometry make it a practical choice for roughing and semi-finishing passes on flat surfaces. The 12-insert configuration supports high metal removal rates across a 5 to 5.4882 inch cutting diameter range, with a maximum depth of cut of 0.236 inches per pass.

Key Features

• 45-degree lead angle with positive 20-degree rake for efficient cutting action and reduced spindle load
• 12 indexable inserts (compatible insert size code 12) for high metal removal rates
• Coolant-through design supports chip control and extended insert life
• Right-hand cutting direction with screw-held insert retention for secure, repeatable seating
• 1.5-inch arbor hole with 0.634-inch keyway width for positive drive transmission
• ADSM cutter style in the CI series for broad insert availability

Compatibility

Compatible with indexable inserts of size code 12 in the CI series. Designed for arbor mounting with a 1.5-inch arbor hole diameter and a 0.634-inch keyway width. Verify spindle arbor size and insert grade selection against the workpiece material before ordering.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician. The machine spindle must be fully powered down and locked out before mounting or removing the face mill from the arbor. Torque insert screws to the insert manufacturer specification using the appropriate Torx or hex key driver. Confirm arbor runout with a dial indicator before the first cut to avoid premature insert wear or chipping.
