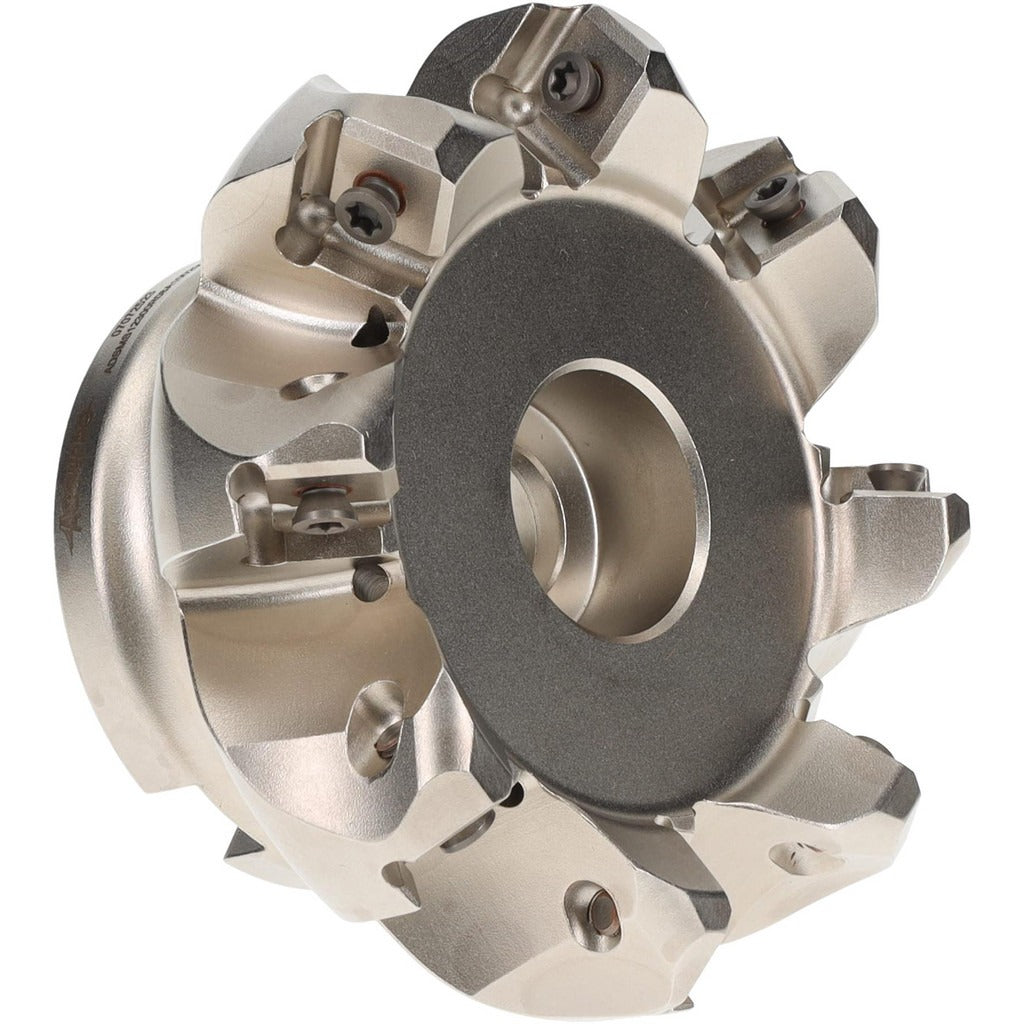

Accupro 07072523 Indexable Chamfer Angle Face Mill

Product Description

The ACCUPRO 07072523 is an indexable chamfer angle face mill designed for precision face milling operations on machining centers and milling machines. This cutter accepts 8 indexable inserts in a positive 20-degree rake geometry with a 45-degree lead angle, reducing cutting forces and improving surface finish on ferrous and non-ferrous workpiece materials. The arbor-mount design uses a 1.0 inch arbor hole diameter with a 0.384 inch keyway for positive torque transmission. Maximum depth of cut reaches 0.236 inches, making it well suited for moderate stock removal and finish facing passes. A coolant-through design helps manage heat and chip evacuation at the cutting zone.

This face mill is intended for use in production and job-shop environments where consistent chamfering and face milling are required. The right-hand cutting direction and screw-lock insert holding method support high-feed applications with predictable insert indexing. Compatible insert size code is 12, Cutter Style ADSM, Series CI. Machinists and CNC setup technicians working with horizontal and vertical milling equipment in industrial manufacturing will find this cutter appropriate for medium-to-large diameter face mill applications.

Key Features

• 45-degree lead angle reduces radial cutting forces and minimizes insert chipping on entry
• Positive 20-degree rake angle promotes free cutting action and lower horsepower draw
• 8-insert capacity increases metal removal rate and extends tool life between changeovers
• Coolant-through design supports chip evacuation and thermal management at the cutting edge
• Screw-lock insert holding provides secure, repeatable seating for all 8 insert pockets
• Right-hand cutting direction compatible with standard spindle rotation on most milling platforms

Compatibility

Designed for arbor-mount milling setups using a 1.0 inch arbor bore with a 0.384 inch keyway. Compatible insert size code 12, Cutter Style ADSM, Series CI. Verify insert grade and geometry selection against workpiece material prior to use.

Installation Notes

Installation should be performed by a qualified machinist or CNC technician. Power down and lock out the machine spindle before mounting or removing the cutter from the arbor. Confirm arbor bore fit, keyway alignment, and drawbar torque per machine tool manufacturer specifications before initiating a cut. Inspect all insert pockets and clamping screws for wear or damage at each insert change interval.
