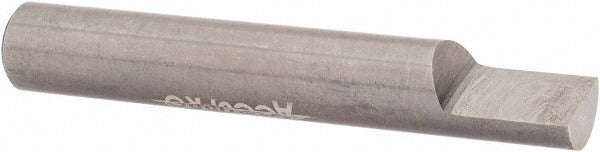

Accupro 01789205 Engraving Cutter 5/16 in Solid Carbide

Product Description

The ACCUPRO 01789205 is a solid carbide engraving cutter designed for precision material removal in engraving, marking, and light milling operations. Built from micrograin solid carbide in an uncoated finish, this single-flute tool offers a 5/16 inch cutter diameter with a 0.313 inch tip diameter and a square point geometry. The 3/8 inch length of cut and 2 inch overall length make it well suited for controlled depth engraving passes. Right-hand cutting direction is standard. Machinists and toolroom operators working with CNC routers, engraving machines, or manual mills will find this cutter appropriate for ferrous and non-ferrous substrates where a clean, square-profile cut is required.

This engraving cutter is intended for use in precision machining environments including tool and die shops, job shops, and manufacturing facilities. Typical applications include part marking, decorative engraving, and shallow pocket work on metals, plastics, and composites. The single-flute design promotes chip clearance in fine-detail passes, and the micrograin carbide construction supports use in both conventional and light climb-cutting scenarios at appropriate feed and speed parameters for the material being cut.

Key Features

• Micrograin solid carbide construction for wear resistance and edge retention
• Square point geometry for flat-bottomed, defined-edge engraving cuts
• Single flute design promotes chip evacuation in fine engraving passes
• Uncoated finish suitable for a wide range of workpiece materials
• Right-hand cutting direction compatible with standard spindle configurations
• Consistent 5/16 inch shank diameter matches common collet and chuck sizes

Compatibility

Designed as an OEM-style engraving cutter for use in CNC and manual engraving machines, routers, and milling equipment accepting a 5/16 inch shank collet or chuck.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician. Disengage and lock out the machine spindle before installing or removing the cutter. Ensure the collet or chuck is clean and within proper runout tolerance before seating the shank, as excessive runout on a single-flute tool accelerates wear and reduces cut quality. Verify feed rate and spindle speed settings are appropriate for the workpiece material before initiating the cut.
