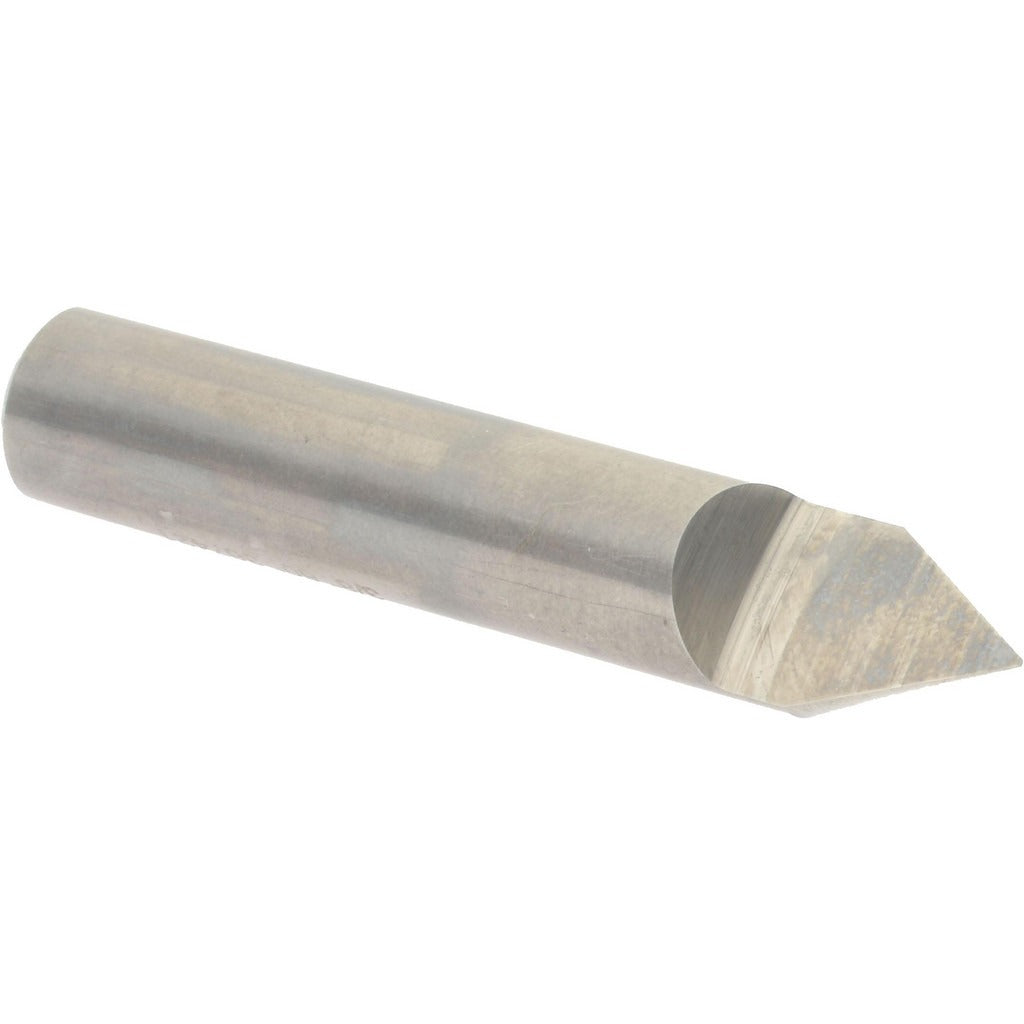

Accupro 01787241 Engraving Cutter 60 Degree Solid Carbide

Product Description

The ACCUPRO 01787241 is a solid carbide engraving cutter designed for precise conical-point engraving operations on metal, plastic, and composite workpiece materials. The cutter features a 60-degree included angle at a conical point geometry, a 3/8 inch cutter diameter, and a matching 3/8 inch shank diameter. Built from micrograin solid carbide with an uncoated finish, it delivers consistent edge sharpness and wear resistance across a range of engraving and marking applications. With a single flute and right-hand cutting direction, it is suited for controlled material removal at the fine detail scales typical of engraving work. Machinists and toolroom technicians install this cutter in CNC machining centers and manual engraving equipment.

This cutter is used in production engraving, part marking, and decorative surface work across industrial and precision machining environments. The conical point geometry allows for sharp V-groove cuts in metals, engineering plastics, and similar materials. It is appropriate for both light-duty bench engravers and CNC routing setups where accurate depth control and repeatable geometry are required. The 2 inch overall length provides adequate reach for standard workholding setups without excessive tool deflection.

Key Features

• Solid micrograin carbide construction for edge retention and resistance to chipping
• 60-degree included angle conical point for precise V-groove and marking cuts
• Single flute design promotes clean chip evacuation in engraving applications
• Right-hand cutting direction compatible with standard spindle rotation
• Uncoated finish maintains sharp edge geometry without coating buildup at the tip
• 3/8 inch shank diameter fits common collet and toolholder sizes

Compatibility

Designed as an OEM-style engraving cutter for use in CNC machining centers and engraving machines accepting a 3/8 inch shank.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician. Power down and lock out the spindle drive before inserting or removing the cutter from the collet or toolholder. Ensure the shank is fully seated and the collet is torqued to the machine manufacturer's specification before operation. Inspect the cutting edge under magnification prior to use to confirm no chipping or damage is present.
