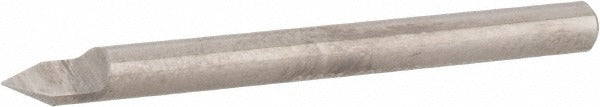

Accupro 01787084 Engraving Cutter 60 Deg Solid Carbide

Product Description

The ACCUPRO 01787084 is a solid carbide engraving cutter designed for precision material removal in engraving and marking applications. The cutter features a conical point geometry with a 60-degree included angle, producing clean, consistent V-shaped cuts in metals, plastics, and composites. Built from micrograin solid carbide and left uncoated, it delivers high hardness and wear resistance in a compact 1/8-inch diameter tool. The single-flute design promotes chip evacuation in tight engraving passes. This tool is installed and operated by machinists and CNC operators working with engraving machines, routers, or milling centers.

This cutter is suited for both manual engraving setups and CNC-controlled applications where tight tolerances and fine detail are required. The 1/8-inch shank diameter fits standard collets used in CNC routers and engraving machines, making it a practical choice for production and one-off engraving work in job shops, signage fabrication, and precision machining environments. Its right-hand cutting direction is compatible with standard spindle rotation on most engraving and milling equipment.

Key Features

• 60-degree included angle conical point for consistent V-groove geometry
• Micrograin solid carbide construction for high hardness and edge retention
• Uncoated finish suitable for a wide range of workpiece materials
• Single-flute design promotes chip clearance during engraving passes
• 1/8-inch shank fits standard collets on CNC routers and engraving machines
• Right-hand cutting direction for compatibility with standard spindle rotation

Compatibility

Designed as a direct-fit engraving cutter for machines equipped with a 1/8-inch collet, including CNC routers, engraving machines, and milling centers running right-hand spindle rotation.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Ensure the machine spindle is fully powered down and locked out before changing tooling. Seat the 1/8-inch shank fully into the collet and torque the collet nut according to the machine manufacturer specifications. Verify spindle rotation direction is right-hand before engaging the cut.
