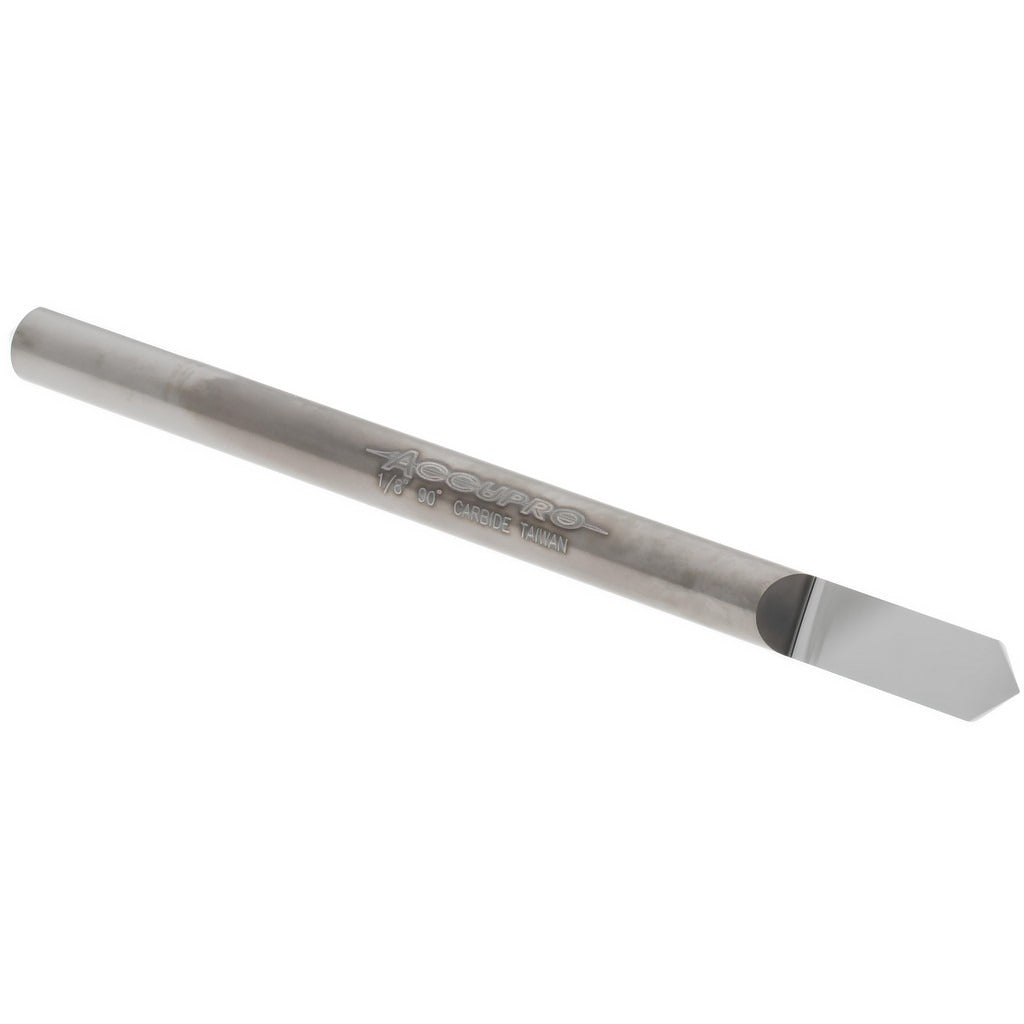

Accupro 00199687 Carbide Split-end Blank 90 Degree Conical

Product Description

The ACCUPRO 00199687 is a solid carbide split-end blank designed for precision machining applications. It features a single conical point end with a 90-degree point angle, providing a defined tip geometry suitable for scribing, marking, or transfer operations. The blank measures 0.125 inches in diameter with a 2-inch overall length and a 3/8-inch split length. Solid carbide construction delivers the hardness and wear resistance required for consistent performance in demanding cutting and marking environments. This type of blank is typically used as a raw tool form for custom grinding or as a finished scribing instrument by machinists and toolroom professionals.

Split-end blanks of this type are used in machine shops, toolrooms, and precision manufacturing settings. The single conical point configuration and 90-degree angle make this blank well suited for layout scribing, part marking, and hole location transfer tasks. It is installed or held in standard tool holders or collet-style holders that accept 0.125-inch shank diameters. Suitable for both manual and CNC-assisted layout work where a consistent point angle is required.

Key Features

• Solid carbide construction for superior hardness and wear resistance
• Single conical point end with a precise 90-degree point angle
• 0.125-inch diameter shank fits standard small-bore collets and holders
• 2-inch overall length provides adequate reach for most toolroom applications
• 3/8-inch split length for consistent point geometry at the working end

Compatibility

Designed as an OEM-style split-end blank for use in standard 0.125-inch diameter collet holders and tool-holding systems used in precision machining and toolroom environments.

Installation Notes

Installation of this blank is typically performed by a machinist or toolroom technician. Ensure the holder or collet is fully de-energized and the machine spindle is locked before seating or removing the blank. Use the appropriate collet wrench and torque to the holder specification without over-tightening, which can damage the carbide shank. Handle solid carbide tooling with care to avoid chipping from impact or dropping.
