Accupro 00199331 Carbide Split-end Blank 0.125in 90 Conical

Product Description

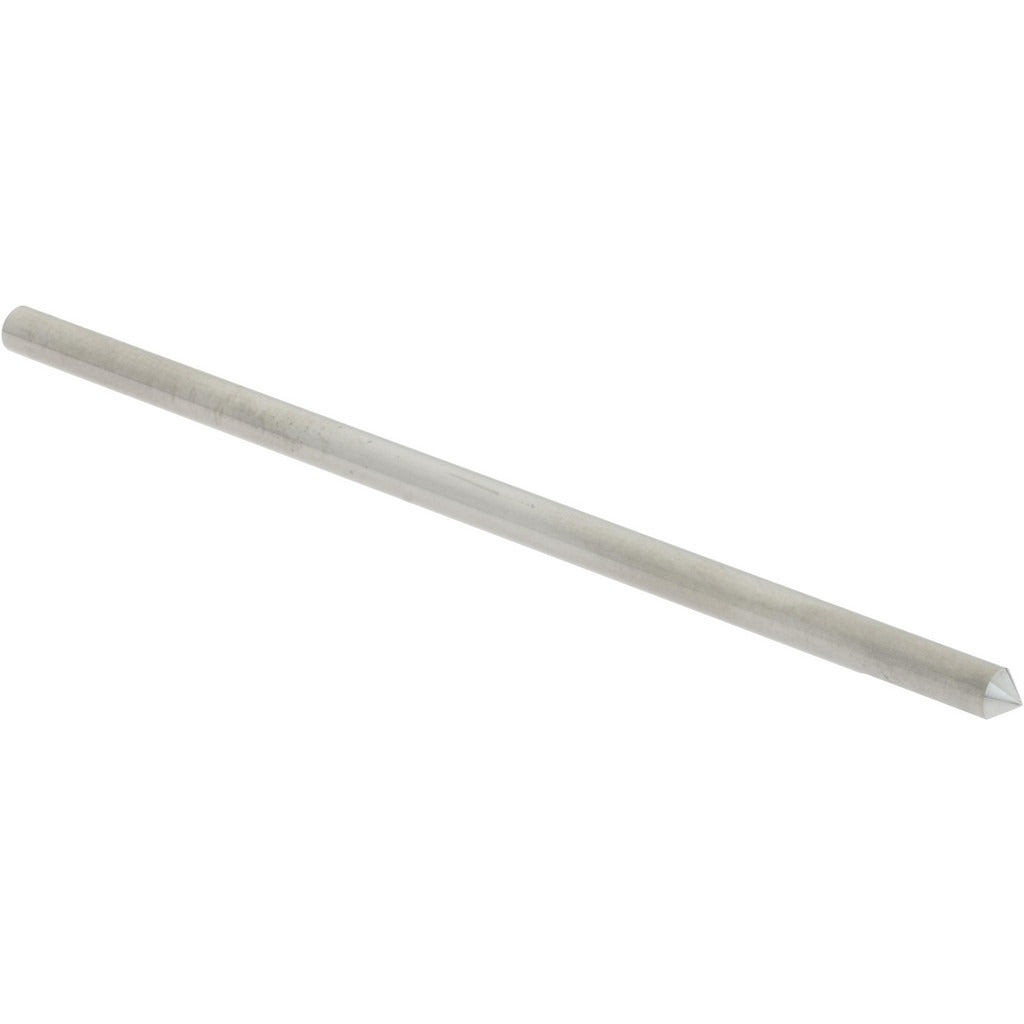

The ACCUPRO 00199331 is a solid carbide split-end blank ground to a single 90-degree conical point. Designed for use as a precision blanks in tooling and machining applications, this piece provides the raw form needed for custom tool grinding or direct use where a conical tip geometry is required. The body is solid carbide throughout, offering the hardness and wear resistance expected in high-precision cutting and tooling environments. With an overall length of 3 inches and a shank diameter of 0.125 inches, this blank suits small-diameter tooling setups in both production and tool-room settings. Machinists, tool grinders, and precision machining professionals are the primary installers and users of this component.

This split-end blank is suited for applications in precision machining shops and tool-grinding operations where a 90-degree conical point geometry is needed in small-diameter format. The 0.375-inch split length provides a defined working zone for custom grinding or direct application. It is commonly used in setups requiring tight-tolerance, small-diameter tooling where solid carbide construction is preferred over high-speed steel alternatives.

Key Features

• Solid carbide construction for high hardness and wear resistance
• Single 90-degree conical point end geometry
• 0.125-inch diameter for small-diameter tooling applications
• 3-inch overall length provides workable stock for tool grinding
• 0.375-inch split length defines the usable working zone
• Sold individually — minimum order quantity of 1

Compatibility

Designed as a precision blank for use in tool-grinding and small-diameter machining applications where a solid carbide, 90-degree conical split-end geometry is required.

Installation Notes

Handling and mounting of carbide blanks should be performed by qualified machinists or tool grinders familiar with carbide tooling. Secure the blank properly in the appropriate holder or grinding fixture before any machining operation. Carbide is brittle — avoid impact loading or clamping forces that may cause chipping. Follow shop safety standards and equipment manufacturer guidelines when grinding or mounting this blank.
