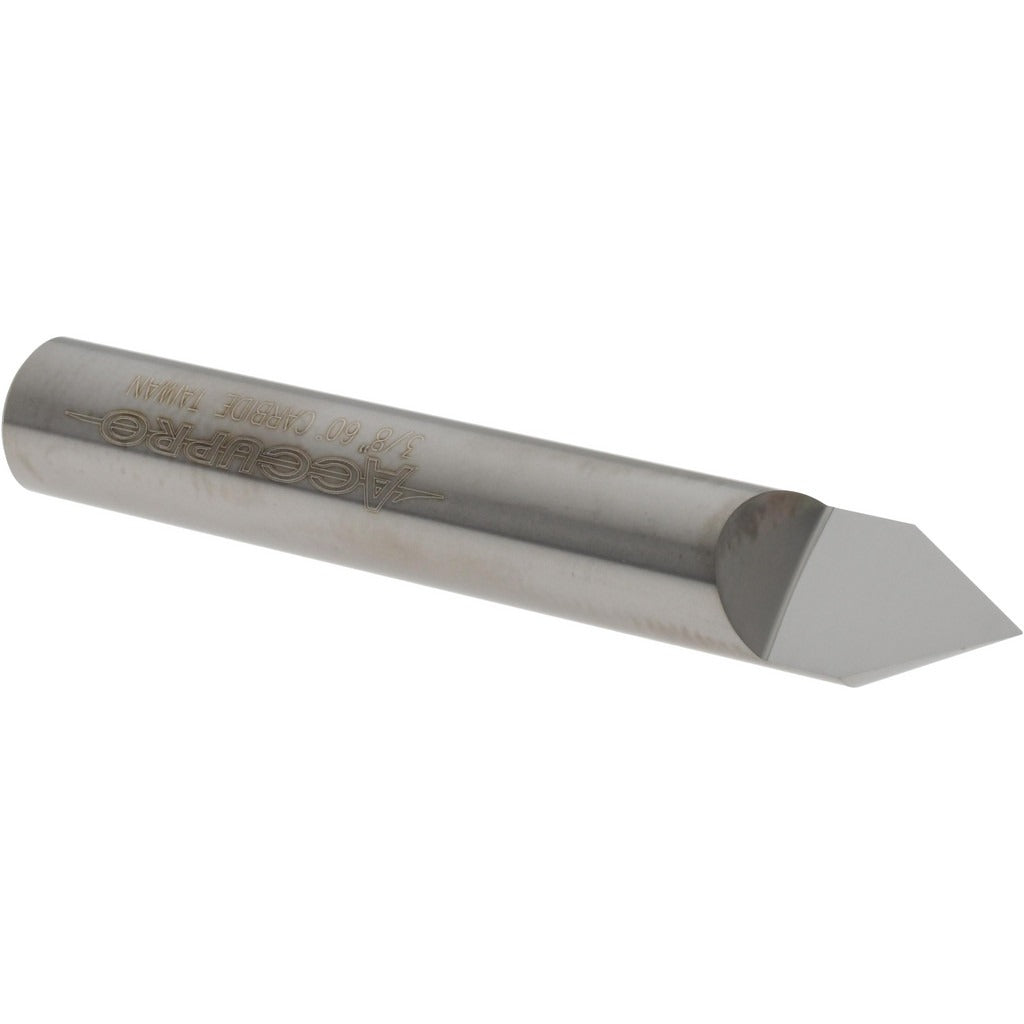

Accupro 00199281 Solid Carbide Split-end Blank 3/8in 60 Deg

Product Description

The ACCUPRO 00199281 is a solid carbide split-end blank designed for precision toolmaking and tool grinding applications. It features a single conical point end ground to a 60-degree point angle, making it suited for use as a starting blank when manufacturing or regrinding split-end cutting tools. The 3/8 inch diameter shank and 2.5 inch overall length provide a compact, rigid form factor. Solid carbide construction delivers the hardness and wear resistance required for demanding tool fabrication work. This blank is sold individually and is handled by tool grinders and toolroom machinists.

This blank is used in toolrooms, grinding shops, and manufacturing environments where custom or replacement cutting tools are produced. The conical point geometry and split-end configuration make it appropriate for applications requiring precise point-angle geometry on the finished tool. The 0.5 inch split length provides adequate material for the split-end grinding operation. Typical users include tool and die makers, toolroom machinists, and grinding specialists working with CNC or manual tool grinders.

Key Features

• Solid carbide construction for high hardness and wear resistance
• Single conical point end with 60-degree point angle
• 3/8 inch diameter with 2.5 inch overall length
• 0.5 inch split length for split-end tool grinding
• Sold as an individual blank with no minimum order beyond one unit

Compatibility

Designed as an OEM-style toolroom blank for use in split-end cutting tool fabrication and regrinding operations on standard tool and cutter grinders accepting 3/8 inch diameter blanks.

Installation Notes

Handling and mounting of carbide blanks should be performed by qualified toolroom machinists or tool grinders familiar with carbide grinding procedures. Secure the blank properly in the grinding fixture before beginning any grinding operation to prevent chipping or cracking of the carbide substrate. Use appropriate diamond grinding wheels rated for solid carbide work. Follow all applicable shop safety procedures and wear appropriate PPE when grinding carbide materials.
