Abb TLM1212CCU 12 Cir. 125 A Convertible L/C

Product Description

The ABB TLM1212CCU PowerMark Gold convertible load centers arrive as main lug but can have a main breaker installed. All ABB load centers are rated up to 60 degree/75 degree centigrade and are suitable for use with service entrance equipment when installed in accordance with electrical code. The TLM1212CCU features space for 12, 1" breakers and a 125 A bus ampere rating.

• Convertible load centers
• Rated up to 60 degree/75 degree centigrade
• Suitable for use with service entrance equipment

Product Highlights

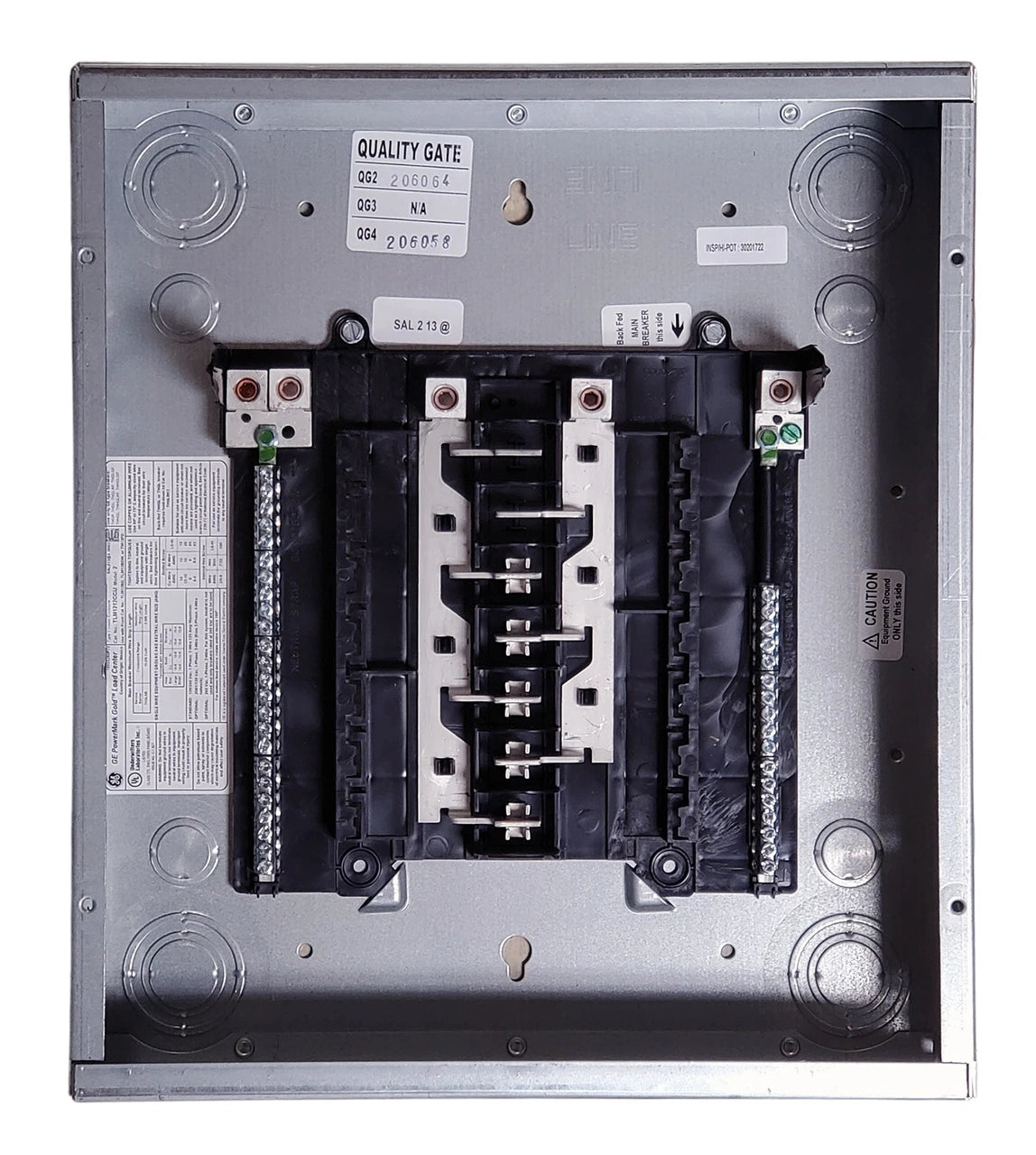

This load center features space for 12, 1" breakers, a 125 A bus ampere rating, a copper bus, and a combination/flush enclosure.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: TLM1212CCU

Technical Specifications

• Category: Load Centers
• Grouping: Single Phase - USA
• # Branch Circuit <250A: 12
• 1" Space: 12
• 1/2" Space: 24
• Amperage: 125 A
• Circuit Breaker Style: Plug-In
• Device type: Main Lug

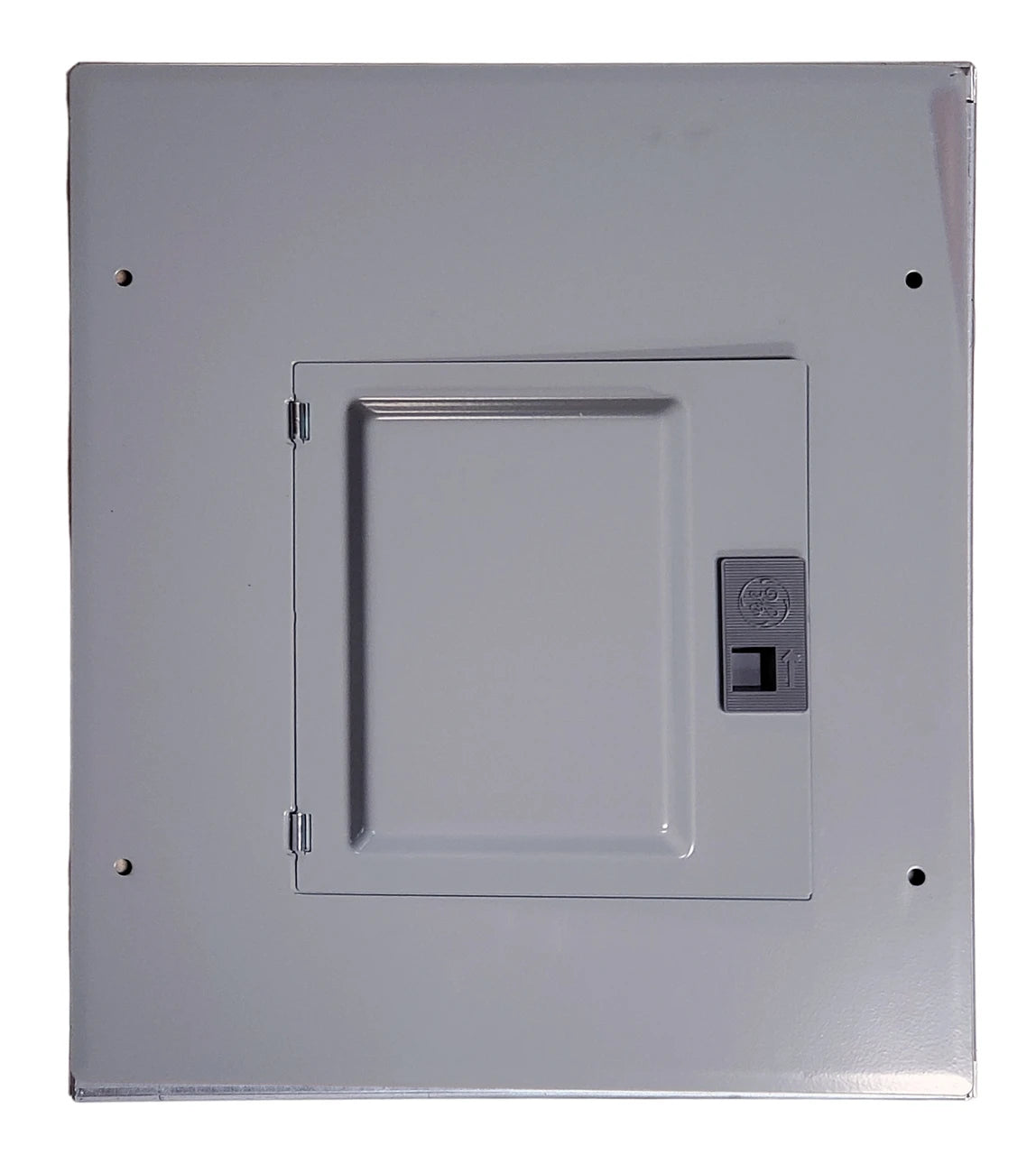

• Door: Yes
• Enclosure: Indoor
• Enclosure Type: Indoor, Combination
• Factory Installed Ground Kit: Yes
• Feed: Either
• Input/Output Voltage: 120/240V ac
• Interrupting Capacity Rating: 65
• Load Center Type: Standard
• NEMA Rating: NEMA 1
• Phase: 1 Phase
• Service & Voltage: 1 Phase, 3 Wire, 120/240V ac
• Wires: 3 Wire
• UL/CUL Listing: UL
• Depth: 3.7 in
• Height: 19.0 in
• Width: 14.0 in
• Service Type: Single-Phase, Three-Wire
• Voltage Rating: 120/240 Vac
• IC Rating (Max): 65 kAIC
• Main Ampere Rating: 125 Amps
• Total Spaces: 24
• Main Device Type: Convertible
• Feed Type: Top
• Front Type: Combination Flush/Surface Front
• Copper Bus: Yes
• 1 Pole, 1" Spaces: 12
• 2 Pole, 1" Spaces: 6
• 3 Pole, 1" Spaces: 0
• 1 Pole, 1/2" Spaces: 24
• 2 Pole, 1/2" Spaces: 10
• Door Included: Yes
• PowerMark: Gold
• Agency Certification: UL
• Unit Width(in inches): 14
• Unit Height(in inches): 16
