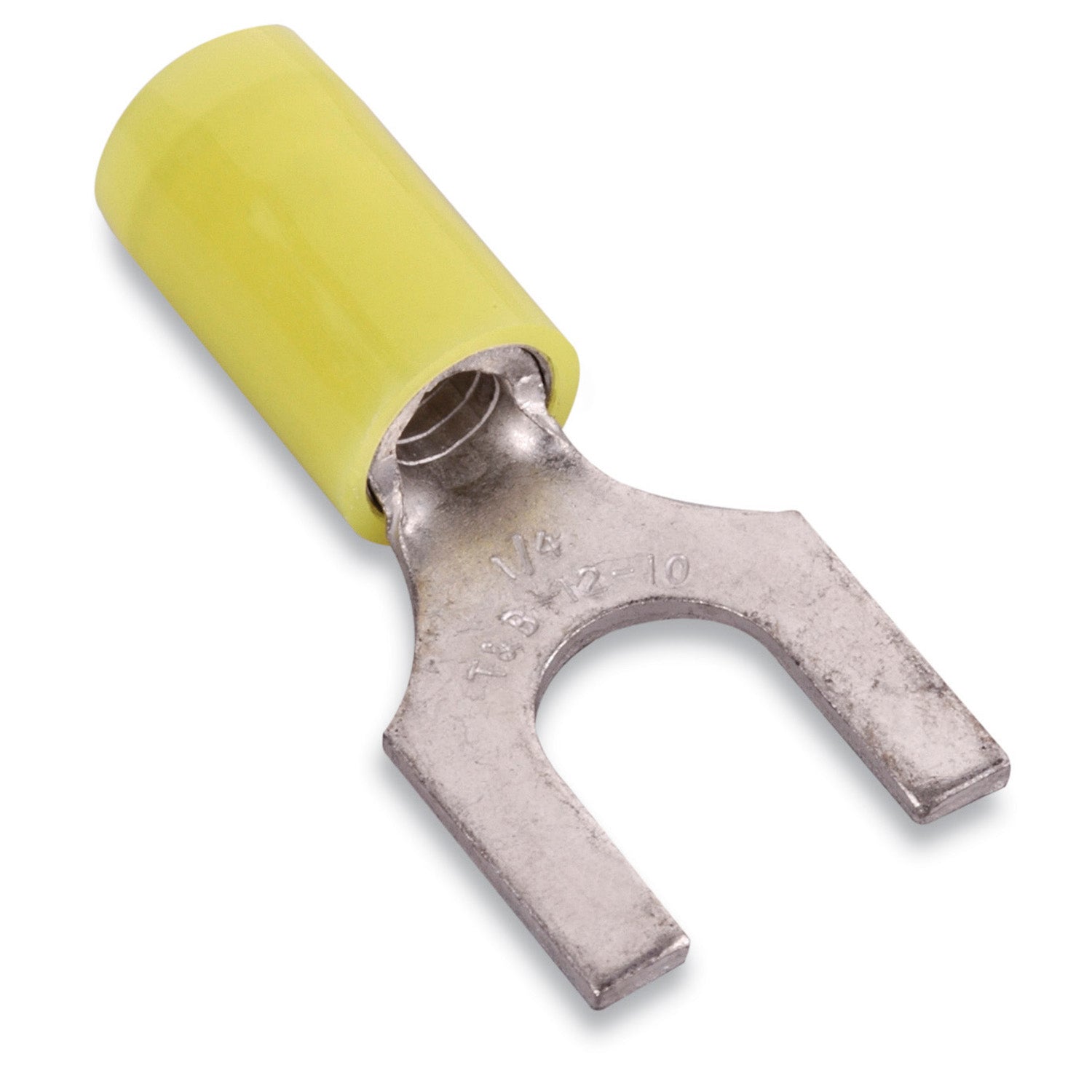

ABB RC10-10F T&B INS NYL FORK TERM 12-10 #10 YELL

Product Description

ABB RC10-10F is a nylon insulated fork terminal for wire connections, designed to support conductors sized between 12 to 10 AWG. This terminal is suitable for applications requiring secure and reliable connections with a #10 stud. Its length is one inch, with a brazed seam and serrated barrel to enhance joint stability.

• Nylon insulation offers greater flexibility and helps prevent conductor creep.
• The serrated barrel provides a high pull-out value.
• Meets safety standards with a voltage rating of six hundred volts.

Product Highlights

This product is built for durability in electrical connections and is ideal for use in various environments. The color-coded nylon jacket makes it easy to identify within installations.

Product Information

Standard Information

• Manufacturer: ABB - Installation Products
• Product SKU: 57980

Technical Specifications

• Conductor Size: 12 to 10 AWG
• Stud Size: #10
• Length: 1 inch
• Material: Copper with electroplated tin finish
• Temperature Rating: 105 degrees C
• Voltage Rating: 600 VAC
• Insulation Type: Nylon
• Series: RC Series
