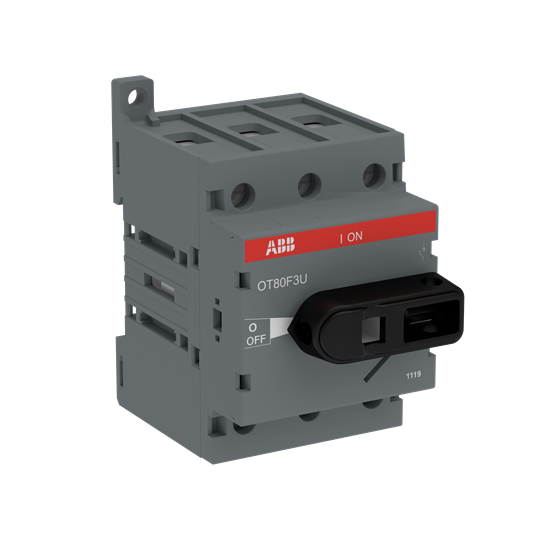

ABB OT80F3U 3P SW 80A NF METAL COLLAR

Product Description

The ABB Disconnect Switch OT80F3U is an industrial-grade electrical safety device designed to isolate specific electrical circuits. This front-operated switch-disconnector features protected terminal clamps and a metal collar, ensuring reliable and safe isolation for maintenance or emergency situations.

• Rated for 80 Amperes
• Compatible with 600 VAC
• 3-Pole configuration

Product Highlights

The ABB OT80F3U disconnect switch is suitable for industrial and commercial applications. It's commonly used in manufacturing plants, data centers, and commercial buildings for isolating individual circuits or equipment.

Product Information

Standard Information

• Brand: ABB
• MPN: OT80F3U

Technical Specifications

• Type: Disconnect
• UNSPSC Code: 39122233
• Standard: CSA C22.2 No. 14, IEC 60947-3, UL 508
• Mounting Type: Base Mounting
• Terminal Type: Screw Terminals
• Number of Poles: 3 Pole
• Voltage Rating: 600 VAC
• Amperage Rating: 80 Amperes
• Power Rating: 40 hp
• Dimensions: 92 mm Height x 53 mm Width x 62 mm Depth
• Includes: Terminal Clamps (IP20)
• Application: For all switching applications, from industrial motor control to construction safety switches
