ABB LCN30 T&B COMPR TERMINAL 35 kV (Per 100 ea)

Product Description

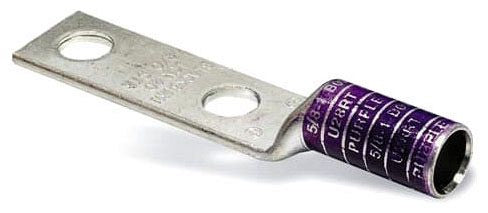

The ABB LCN30 is a color-keyed compression lug connector designed for use with copper stranded conductors. This 2-hole connector supports a conductor size of 3/0 AWG and is rated for up to 35 kV. The connector features a half-inch stud size and a straight tongue, measuring two and fifteen-sixteenths inches long by fifteen-sixteenths inches wide. It has a long barrel design, with a barrel length of one and one-eighth inches, and an overall length of four and seven-sixteenths inches.

• Made of high conductivity seamless copper tubing
• Tin plated for corrosion resistance
• Color coded for easy identification

Product Highlights

The LCN30 lug connector is suitable for medium voltage applications. It complies with federal electrical engineering standards. Ideal for industrial, mining, and welding applications.

Product Information

Standard Information

• Manufacturer: ABB - Installation Products
• UPC: 78378603250

Technical Specifications

• Application: AWG Stranded/Flexible Cable/Welding Cable, Industrial Electrical Termination
• Barrel Size: 1-1/8 in L
• Color: Orange
• Conductor Size: 3/0 AWG
• Conductor Type: Copper/Stranded
• Voltage Rating: 35 kV
• Tongue Size: 2-15/16 in L x 15/16 in W x 1/8 in THK
• Tongue Type: Straight
